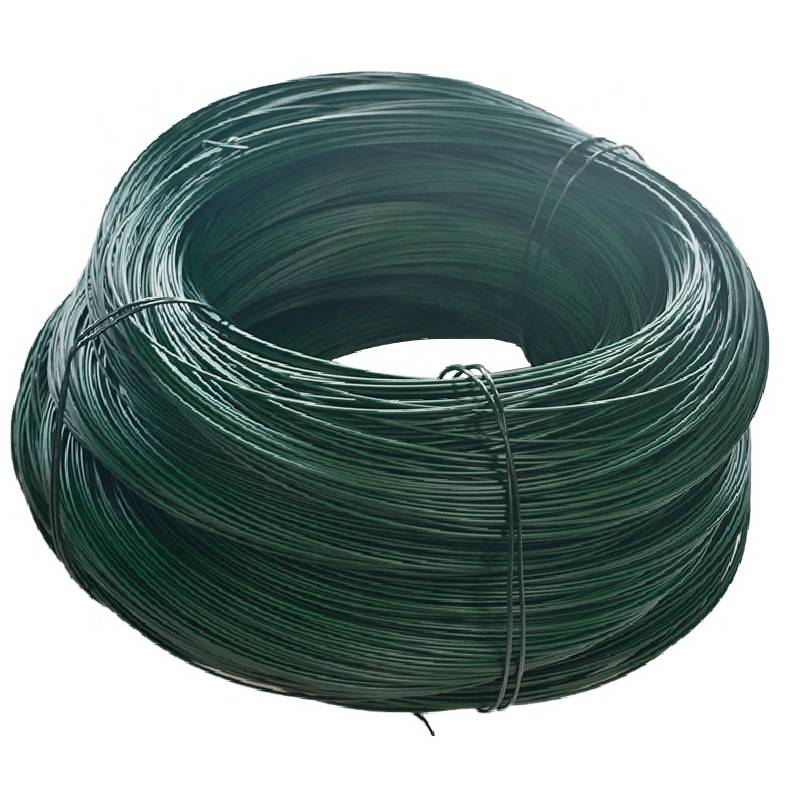

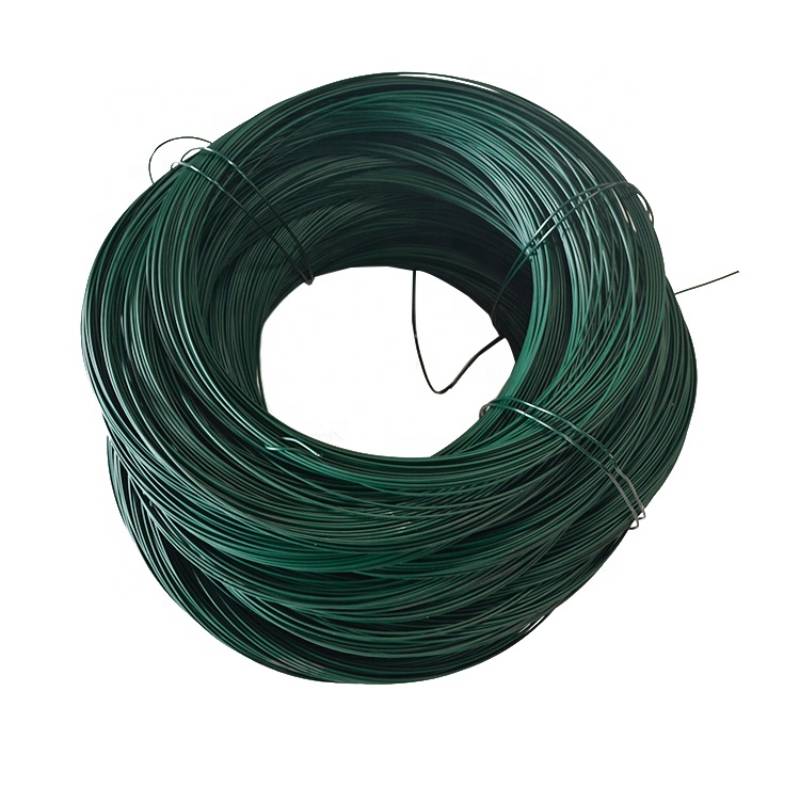

PVC Coated Iron Wire
-
PVC coated wire is wrapped with PVC material on the surface of the wire to ensure the service life and environmental protection requirements of the product.
-
It is widely used by bundling, decoration, agriculture and forest protection, agriculture and forestry lashing, animal breeding, aquaculture, stadiums, etc.
Describe
-
The metal wire is plasticized at a high temperature, so that the metal wire and the plastic particles on the surface are closely combined and pasted, so that the air does not penetrate into the surface of the metal wire to oxidize and rust.
-
There are many colors of PVC coated silk. For example, dark green, fresh green, white, black, red, yellow, transparent, brown and available as customers’ request.
Parameters Table
|
Product name: |
PVC coated iron wire |
|
Wire Gauge: |
0.5mm-4.0mm many others available as per buyers' request. |
|
tensile Strenght |
30-55KGS/mm² |
|
Core Material: |
Q195, low carbon steel wire, galvanized steel wire, return wire, aluminum alloy wire, aluminum wire. |
|
Core wire diameter/after coated |
Core wire diameter/after coated |
|
0.8mm / 1.2mm |
0.9mm /1.3mm |
|
1.0mm / 1.6mm |
1.2mm / 2.0mm |
|
1.4mm / 2.0mm |
1.6mm / 2.4mm |
|
1.8mm / 2.6mm |
1.9mm / 2.9mm |
|
2.0mm / 3.0mm |
2.2mm / 3.2mm |
|
2.4mm / 3.5mm |
2.6mm / 4.0mm |
|
2.8mm / 4.2mm |
3.0mm / 4.2mm |
