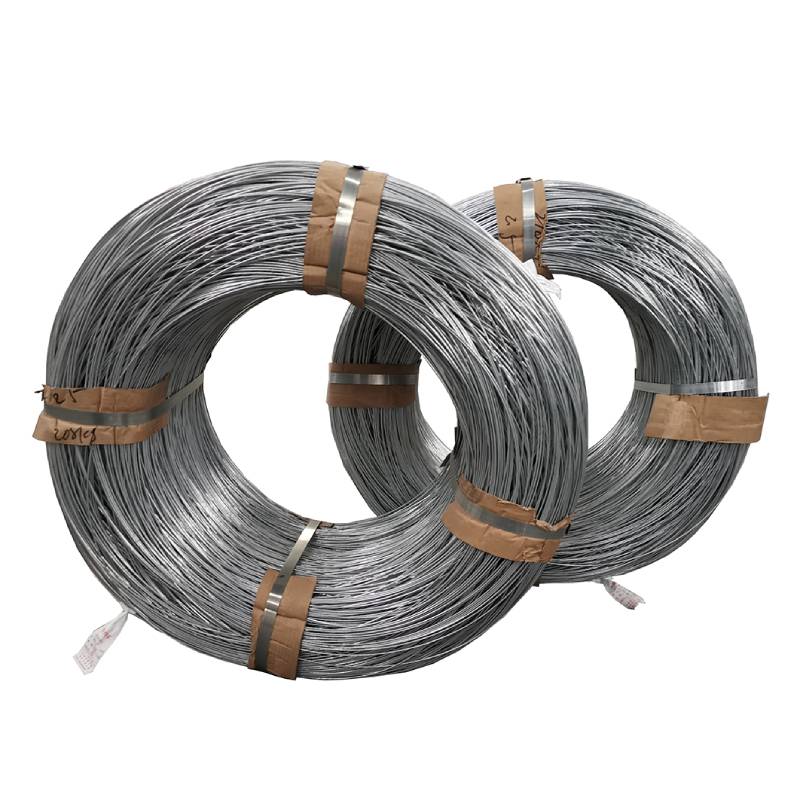

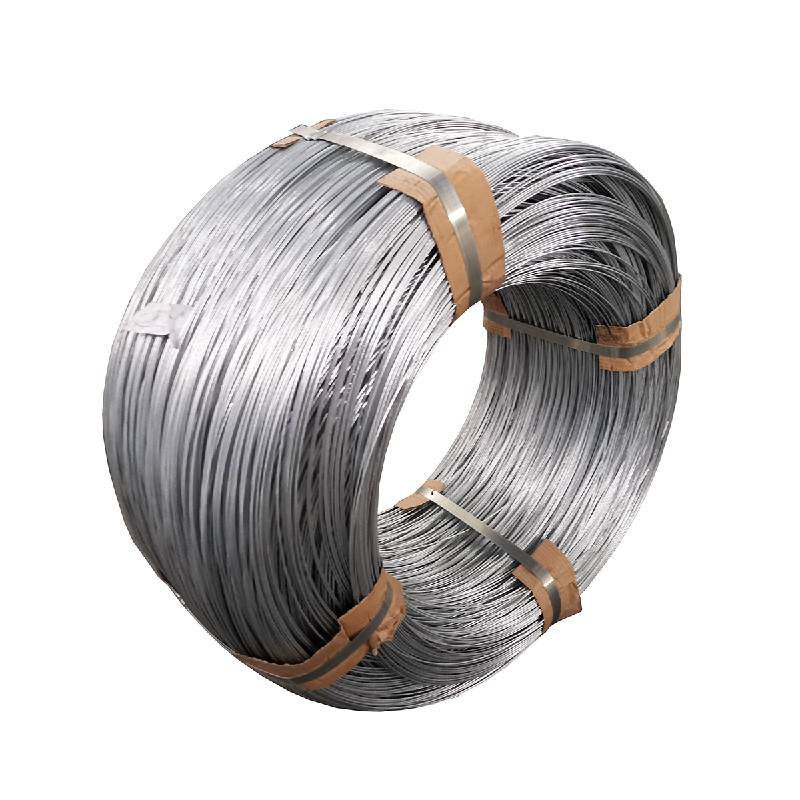

Galvanized Iron Wire
- Galvanized Iron Wire is designed to prevent rusting and shiny silver in color.
- It is solid,durable and extremely versatile, it is widely used by landscapers, building,weaving the hardware cloth and mesh.
Description
-
Galvanized wire is divided into hot dipped galvanized wire and electro-galvanized wire (cold galvanized wire).
-
Galvanized wire has good flexibility and toughness. With zinc coating thickness, corrosion resistance and other characteristics.
-

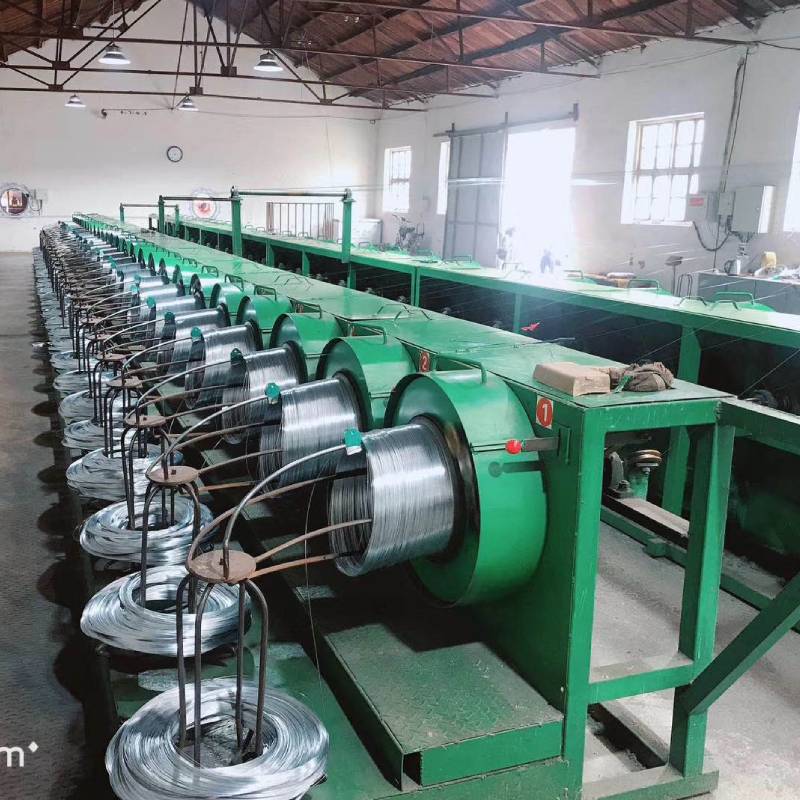

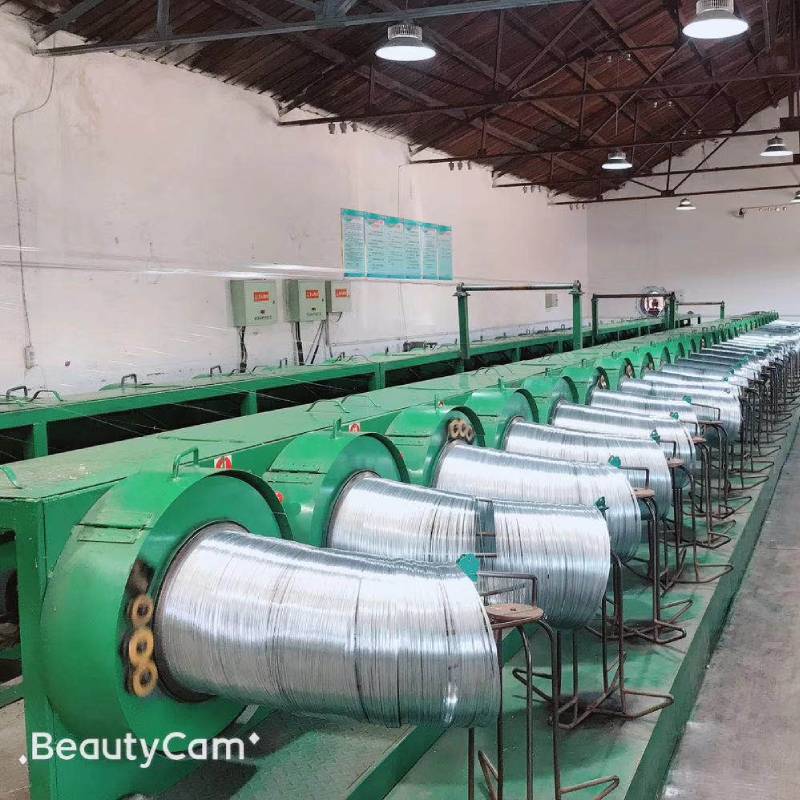

Hotdip galvanized iron wire is made with choice low carbon steel wire, through wire drawing, acid washing and rust removing, annealing and coiling.
-
Electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes.
-
Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc.
Parameters Table
|
Name |
Hot Dipped Galvanized Wire |
Electro Galvanized Wire |
||
|
Zinc coat |
45-366g/m² |
10-18g/m² |
||
|
Wire Guage |
BWG8 ~ 26# |
AWG8 ~ 26# |
SWG8 ~ 26# |
|
|
Wire Diameter |
4mm ~ 0.46mm |
4mm ~ 0.46mm |
4mm ~ 0.46mm |
|
|
Material |
Q195 or as needed |
|||
|
Tensile Strength |
350-550N/mm² |
|||
|
Wire Gauge Size |
SWG(mm) |
BWG(mm) |
BG(mm) |
|
8 |
4.06 |
4.19 |
3.988 |
|
9 |
3.66 |
3.76 |
3.551 |
|
10 |
3.25 |
3.40 |
3.175 |
|
11 |
2.95 |
3.05 |
2.827 |
|
12 |
2.64 |
2.77 |
2.517 |
|
13 |
2.34 |
2.41 |
2.24 |
|
14 |
2.03 |
2.11 |
1.994 |
|
15 |
1.83 |
1.83 |
1.775 |
|
16 |
1.63 |
1.65 |
1.588 |
|
17 |
1.42 |
1.47 |
1.412 |
|
18 |
1.22 |
1.25 |
1.257 |
|
19 |
1.02 |
1.07 |
1.118 |
|
20 |
0.91 |
0.89 |
0.996 |
|
21 |
0.81 |
0.813 |
0.887 |
|
22 |
0.71 |
0.711 |
0.749 |
|
23 |
0.61 |
0.635 |
0.707 |
|
24 |
0.56 |
0.559 |
0.629 |
|
25 |
0.51 |
0.508 |
0.56 |
|
26 |
0.46 |
0.457 |
0.498 |
