Bulk Wholesale Metal Field Fence Gates Types Supply For Chickens Dogs Goats Cattle

Field Fence

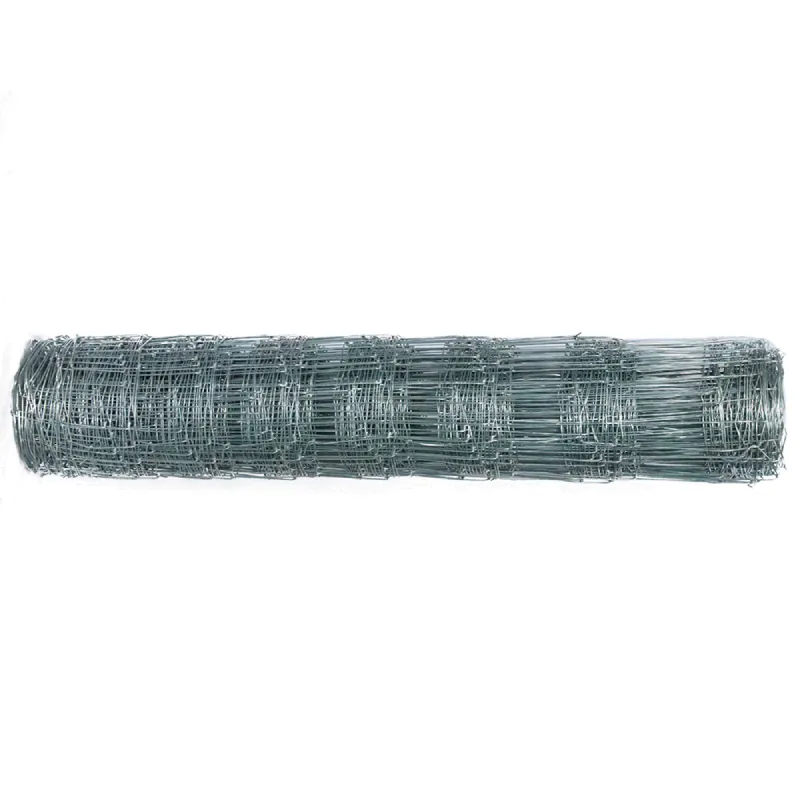

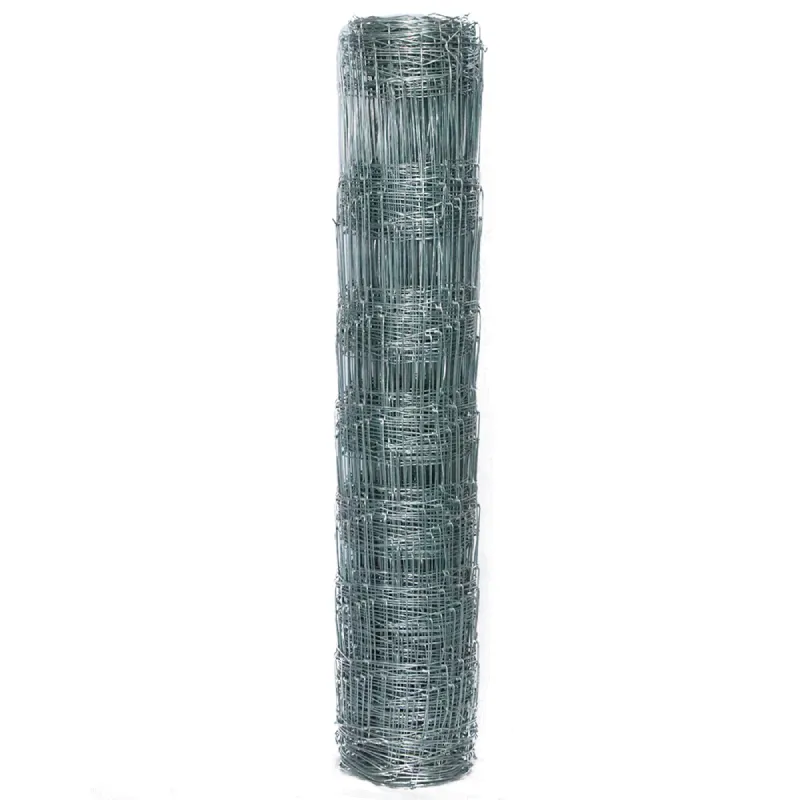

Field fence, also known as farm fence or stock fence, is an essential agricultural tool used to create enclosures and boundaries in rural areas and fencing for different kind of animals.
Whether it is used to contain livestock, protect crops, or define property lines, field fence plays a crucial role in ensuring the safety and security of the farming community.

Product details Contact Now

Fixed Knot

The fixed knot utilizes a third wire which is formed around the crossover points of the horizontal line and the vertical wires. It provides superior strength and allows for increased post spacing. The valuable herds and orchards can be protected both inside and out. It provides superior resistance to movement from animal penetration and climbing and severe snowstorms.

Fixed Knot Display

Item No.	Number of Horizontal Wires	Vertical Spacing	Height	Wire Gauge	Roll Length
1561-6	15	6“	61“	12.5ga	330', 500' or 660'
1775-6	17	6“	75“	12.5ga	330', 500' or 660'
1584-6	18	6“	84“	12.5ga	330', 500' or 660'
Jun-96	20	6“	96“	12.5ga	330', 500' or 660'
Dec-96	20	12"	96“	12.5ga	330', 500' or 660'

Read More About metal farm gates for sale

Ideal for all terrains, corrals and pastures;
Galvanized wire resists weathering as well as wear and tear;
Class 1 and Class 3 zinc coating available;
High tensile and classic available;
330ft, 500ft and 660ft length available

Our Factory

Hinge Joint

The hinge joint is formed by horizontal line wire and vertical staywire joint made by wrapping stay wire around line wires.lt allowsthe fencing to give under pressure and spring back into shape.Under changing weather it expands or contracts, giving flexibilityand added strength. lt is popular in agricultural field fencingbecause of its fexibility. As an economical choice, it can withstandanimal impacts without breaking.

Hinge Joint Display

Item No.	Number of Horizontal Wires	Height	Vertical Spacing	Top & Bottom Wire Diameter	Filler Wire Diameter	Roll Length
1047-12-12.5	10	47"	12	12.5ga	10ga	100',200'OR 330'
939-12-12.5	9	39"	12	12.5ga	10ga	100',200'OR 330'
832-12-12.5	8	32"	12	12.5ga	10ga	100',200'OR 330'
726-12-12.5	7	26"	12	12.5ga	10ga	100',200'OR 330'
845-12-12.5	8	45"	12	12.5ga	10ga	100',200'OR 330'
635-12-12.5	6	35"	12	12.5ga	10ga	100',200'OR 330'
1047-6-12.5	10	47"	6	12.5ga	10ga	100',200'OR 330'
939-6-12.5	9	39"	6	12.5ga	10ga	100',200'OR 330'
832-6-12.5	8	32"	6	12.5ga	10ga	100',200'OR 330'
726-6-12.5	7	26"	6	12.5ga	10ga	100',200'OR 330'
939-6-14.5	9	39"	6	14.5ga	11ga	100',200'OR 330'
832-6-14.5	8	32"	6	14.5ga	11ga	100',200'OR 330'
726-6-14.5	7	26"	6	14.5ga	11ga	100',200'OR 330'
1047-12-12.5	10	47"	12	12.5ga	10.5ga	100',200'OR 330'
939-12-12.5	9	39"	12	12.5ga	10.5ga	100',200'OR 330'
832-12-12.5	8	32"	12	12.5ga	10.5ga	100',200'OR 330'
726-12-12.5	7	26"	12	12.5ga	10.5ga	100',200'OR 330'
1047-6-12.5	10	47"	6	12.5ga	10.5ga	100',200'OR 330'
939-6-12.5	9	39"	6	12.5ga	10.5ga	100',200'OR 330'
832-6-12.5	8	32"	6	12.5ga	10.5ga	100',200'OR 330'
726-6-12.5	7	26"	6	12.5ga	10.5ga	100',200'OR 330'
1478-6-12.5	14	78"	6	12.5ga	12.5ga	100',200'OR 330'
1047-12-14	10	47"	12	14ga	12.5ga	100',200'OR 330'
939-12-14	9	39"	12	14ga	12.5ga	100',200'OR 330'
832-12-14	8	32"	12	14ga	12.5ga	100',200'OR 330'
726-12-14	7	26"	12	14ga	12.5ga	100',200'OR 330'
1047-6-14	10	47"	6	14ga	12.5ga	100',200'OR 330'
939-6-14	9	39"	6	14ga	12.5ga	100',200'OR 330'
832-6-14	8	32"	6	14ga	12.5ga	100',200'OR 330'

The graduated spacing that starts with smallopenings at the bottom can help prevententry from small animals.
Using a variety of spacing confgurations, itcan be designed to accommodate horses,
cattle, hogs, and other large animals;
ldeal for all terrains, corrals and pastures;
Galvanized wire resists weathering as well aswear and tear;
Class 1 and Class 3 zinc coating available
High tensile and classic available;
100ft, 200ft and 330ft length available

Our Factory

X Knot

The X knot is formed by a separate piece of wire tieing the crossover points of the line and stay wires, it provides extra vertical strength to withstand impact from animals.The X knot is a good choice for animal hair and skin protection,the knot makes it the preferred option for horse, sheep and goat.

X Knot Display

Ideal for all terrains, corrals and pastures;
Galvanized wire resists weathering as well as wear and tear;
Class 1 and Class 3 zinc coating available;
High tensile and classic available;
100ft, 200ft and 330ft length available

Item No.	Number of Horizontal Wires	Height	Vertical Spacing	Top & Bottom Wire Diameter	Filler Wire Diameter	Roll Length
939-6-11	9	39"	6" or 12"	9ga	11ga	100',200'OR 330'
1047-6-11	10	47"	6" or 12"	9ga	11ga	100',200'OR 330'
832-6-12.5	8	32"	6" or 12"	10ga	12.5ga	100',200'OR 330'
939-6-12.5	9	39"	6" or 12"	10ga	12.5ga	100',200'OR 330'
1047-6-12.5	10	47"	6" or 12"	10ga	12.5ga	100',200'OR 330'
1472-6-12.5	14	72"	6" or 12"	10ga	12.5ga	100',200'OR 330'
939-6-13	9	39"	6" or 12"	10.5ga	13ga	100',200'OR 330'
1047-6-13	10	47"	6" or 12"	10.5ga	13ga	100',200'OR 330'

Item No.	Spacing	Height	Top & Bottom Wire Diameter	Filler Wire Diameter	Roll Length
1036-2-12.5	4" x 2"	36"	10ga	12.5ga	100',200'OR 330'
1348-2-12.5	4" x 2"	48"	10ga	12.5ga	100',200'OR 330'
1660-2-12.5	4" x 2"	60"	10ga	12.5ga	100',200'OR 330'
1972-2-12.5	4" x 2"	72"	10ga	12.5ga	100',200'OR 330'
1036-4-12.5	4" x 4"	36"	10ga	12.5ga	100',200'OR 330'
1348-4-12.5	4" x 4"	48"	10ga	12.5ga	100',200'OR 330'
1660-4-12.5	4" x 4"	60"	10ga	12.5ga	100',200'OR 330'
1972-4-12.5	4" x 4"	72"	10ga	12.5ga	100',200'OR 330'

2"x4" spacing prevents stepping through and climbing up
4"x4" mesh provides strong confinement and deters animals from putting their heads through the fence
small openings prevent hoof entanglement

Our Factory
