What to Know Before Choosing Wire Mesh Decking Manufacturers

If you’re shortlisting wire mesh decking manufacturers for pallet rack projects, you’ve probably noticed two things: specs that look oddly similar, and prices that don’t. As someone who has walked a few shop floors (and a few fire inspections), I’ll share what actually matters—beyond the glossy brochures.

Market trends, fast

Three shifts are shaping the category: insurers pushing stricter fire codes (more open mesh, flared channels), a surge in automation (tighter tolerances for AMRs and totes), and sustainability audits (zinc coatings, EPD talk). Lead times have improved post-2023, though customization still drives the schedule, to be honest.

Core specs that move the needle

Parameter	Typical options (≈, real-world use may vary)
Deck size (W × D)	42–52 in × 36–60 in; custom up to 60 × 60 in
Wire gauge / mesh	4.0–6.0 mm wire; 2.5 × 4 in or 2 × 4 in grid
Channels	U-channel 1.0–1.5 mm, step or flared; 3–5 pcs
Finish	Powder coat, electro-galvanized, hot-dip galvanized (ASTM A123)
Load rating (UDL)	1,500–3,000 lb typical per deck; proof testing per ANSI/MH standards

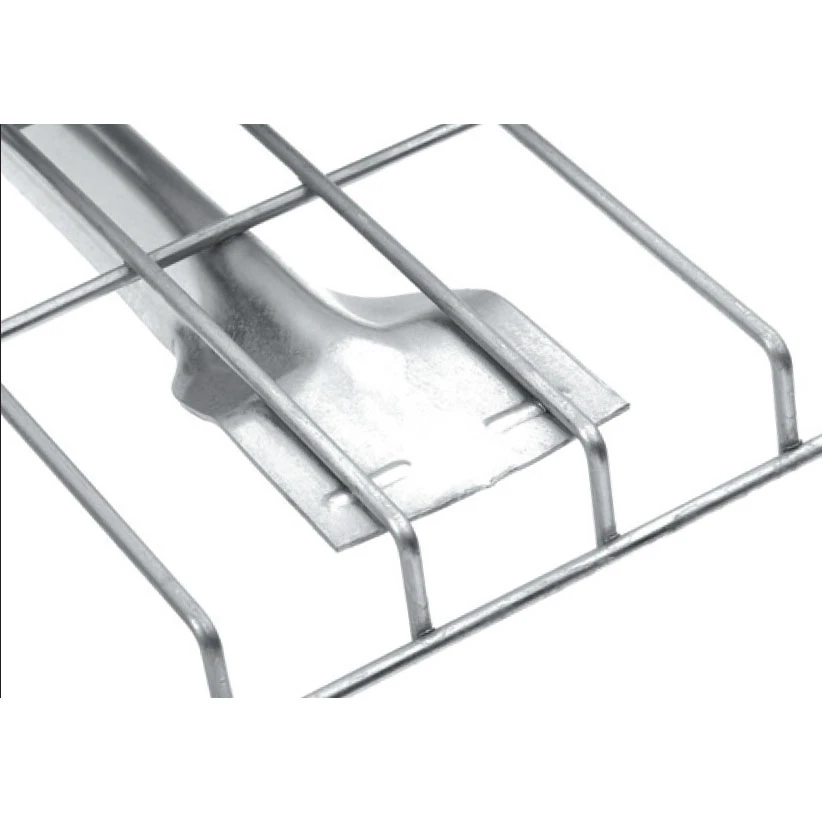

Edges	Standard waterfall, inside waterfall, inverted step/flared

How it’s made (and why it matters)

Materials: low-carbon steel wire (often Q235) per ASTM A641/A641M, cold-formed channels. Methods: automated resistance welding for consistent node fusion; straightening and jig-weld to limit camber; powder or zinc finish. Testing: dimensional checks, weld shear samples, UDL load tests with deflection tracking, plus salt spray (≈72–500 h depending on finish). Standards you’ll hear: ANSI MH26.2 for welded wire rack decking, RMI/ANSI MH16.1 for rack fit-up, and EN 15512/FEM 10.2.07 on the EU side. Service life? I’d budget 10–15 years in dry warehouses; corrosive or freezer environments require upgraded coatings.

Use cases we see weekly

E‑commerce DCs needing flared decks for step beams and carton flow lanes.
3PL retrofits where inside-waterfall edges help with label visibility.
Food and cold chain choosing hot-dip galvanized for condensation cycles.
Automation cells using tighter 2 × 2 in mesh under AMR routes (spillage control).

Vendor comparison (field-notes style)

Vendor	Location	Certs/Standards	Finishes	Lead time ≈
Hebei Metals “Decking”	No.337 Xinhua Rd, Shijiazhuang, Hebei, China	ISO 9001; ANSI MH26.2 test reports available	Powder, EG, HDG	3–5 weeks standard, faster on repeats
Vendor A (US)	Midwest	RMI/ANSI conformance	Powder, EG	2–4 weeks on common SKUs
Vendor B (EU)	Central Europe	EN 15512, FEM	Powder, HDG	4–7 weeks incl. customs

Not all wire mesh decking manufacturers publish full test curves; ask for load/deflection data at 1.5× UDL and weld shear samples. It’s a quick tell.

Customization checklist

Mesh aperture: 2 × 4 in standard; 1 × 4 in for small parcels.
Channel count: 3 for 42 in deep, 4–5 for 48–60 in deep racks.
Edges: standard waterfall vs inside-waterfall (labels) vs inverted (food).
Stop bars, dividers, upturned lips, and safety flanges for point loads.
Finish: HDG for outdoors/freezer; powder for dry ambient to save cost.

Quick case story

A regional 3PL needed 4,800 pcs 48 × 46 in decks across three sites. Hebei Metals’ Decking team batched electro-galv with inside-waterfall edges, verified UDL 2,500 lb on step beams, and shipped in 28 days door-to-door. Feedback was simple: “no rework, labels visible, and forklifts stopped snagging.” Honestly, that’s what you want.

Bottom line: shortlist wire mesh decking manufacturers that show their math (test data), fit your fire and insurer requirements, and don’t blink at odd sizes. The rest is price, finish, and lead time.
