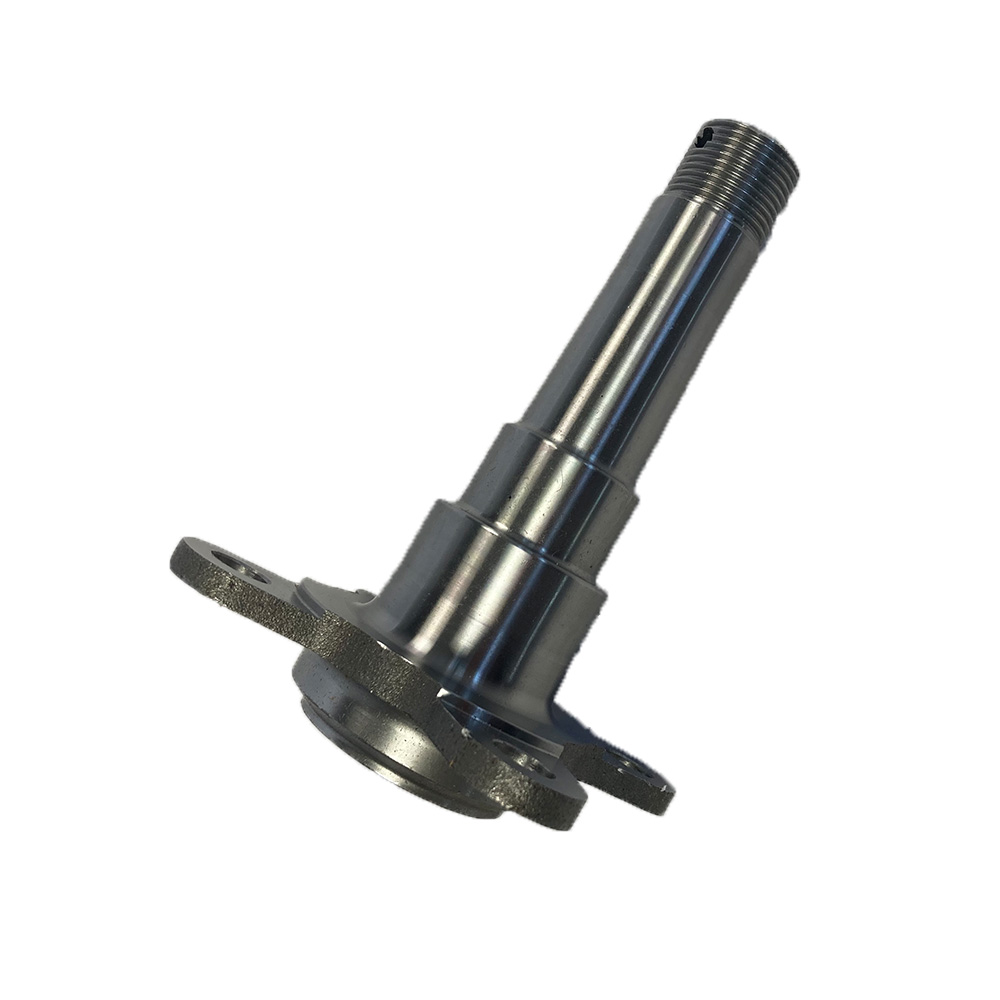

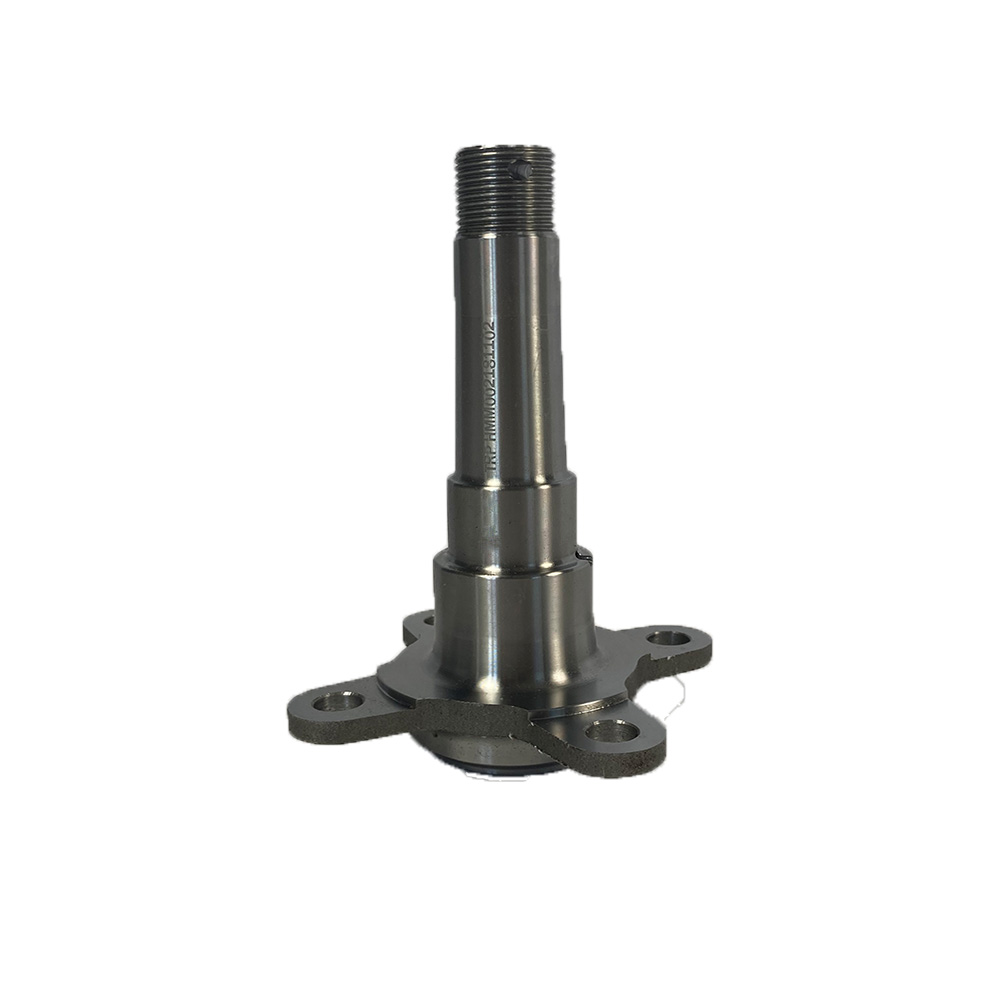

Spindle
- Trailer spindles act as part of trailer's axle, hot forged blank provides you highly precision and best mechanical properties.

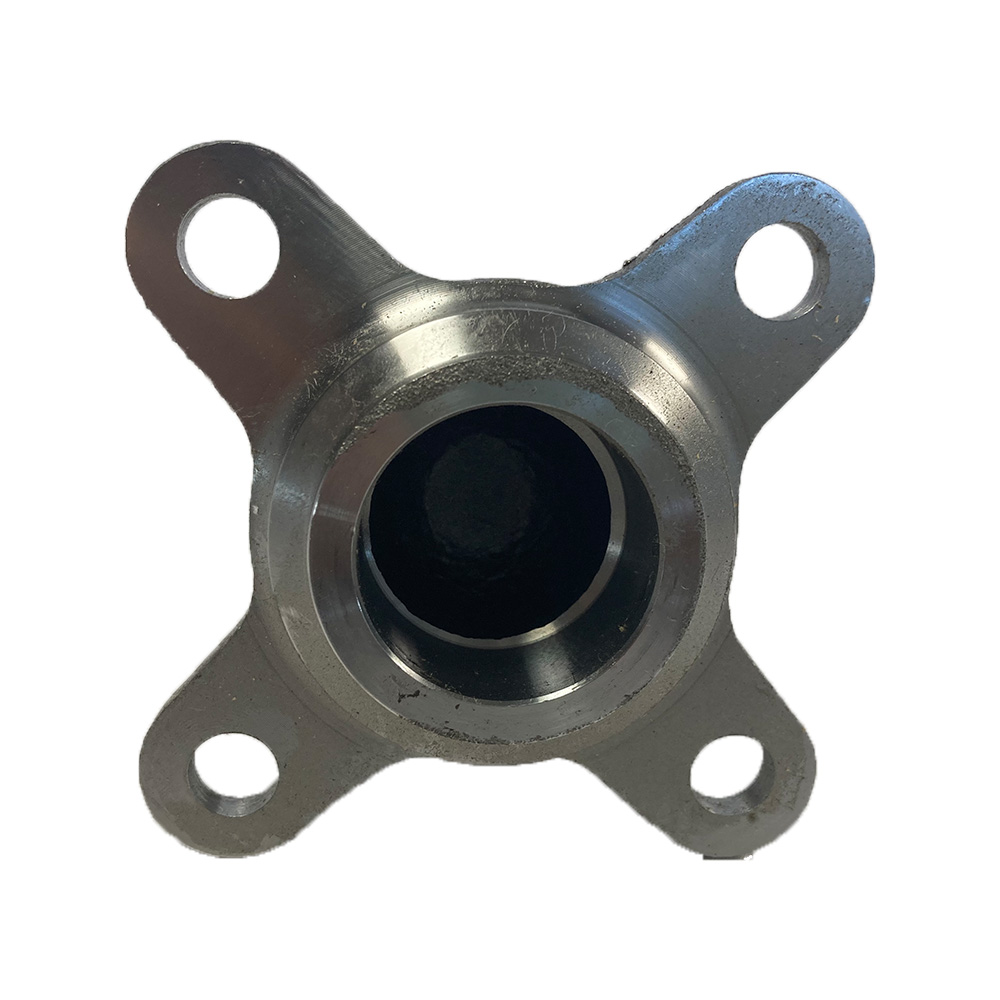

- What’s more, integrated flange is superior to welded flanges because it can avoid your spindle from warping.
- Production process: Hot forging- machining- hole drilling- oil dipping-inspection- packing
Description
-
Suitable for almost all brands of axles like Dexter, Rockwell American, and Lippert.
-
Axle capacity equals 2 times of spindle’s rating capacity
-
Can also be used when building a custom axle
-
High tensile strength steel and precisely machined
-
Easy lube with grease zerk
-
Washer, spindle nut, and cotter pin needed
-
1-year limited warranty
Parameters Table
|
DESCRIPTION |
DIMENSIONS |
APPLICATION |
|||||||||||
|
PART NO. |
REF NO. |
CAPACITY |
UNIT WT. |
A |
B |
C |
D |
E |
F |
H |
I |
Axle Tube |
Flange |
|
SP-HF-IF-84L |
SP126288 |
1750LBS |
3.29LBS |
1.95" |
3.00" |
6.35" |
1.72" |
1.376" |
1.062" |
2.45" |
5.36" |
2-3/8" |
4 bolt 10" |
|
SP-HF-IF-8455 |
SP-HF-IF-8455 |
1750LBS |
3.97LBS |
2.55" |
3.00" |
6.35" |
1.72" |
1.376" |
1.062" |
3.00" |
5.46" |
2-3/8" |
4 bolt 10" |
|
SP-HF-IFB-42L-213 |
SP-HF-IFB-42L-213 |
3500LBS |
7.31LBS |
2.45" |
3.25" |
8.25" |
2.13" |
1.749" |
1.249" |
3.00" |
7.25" |
3" |
5 bolt 12" |
|
SP-HF-IFB-42L-225 |
SP124551 |
3500LBS |
7.31LBS |
2.45" |
3.25" |
8.25" |
2.25" |
1.749" |
1.249" |
3.00" |
7.25" |
3" |
5 bolt 12" |
