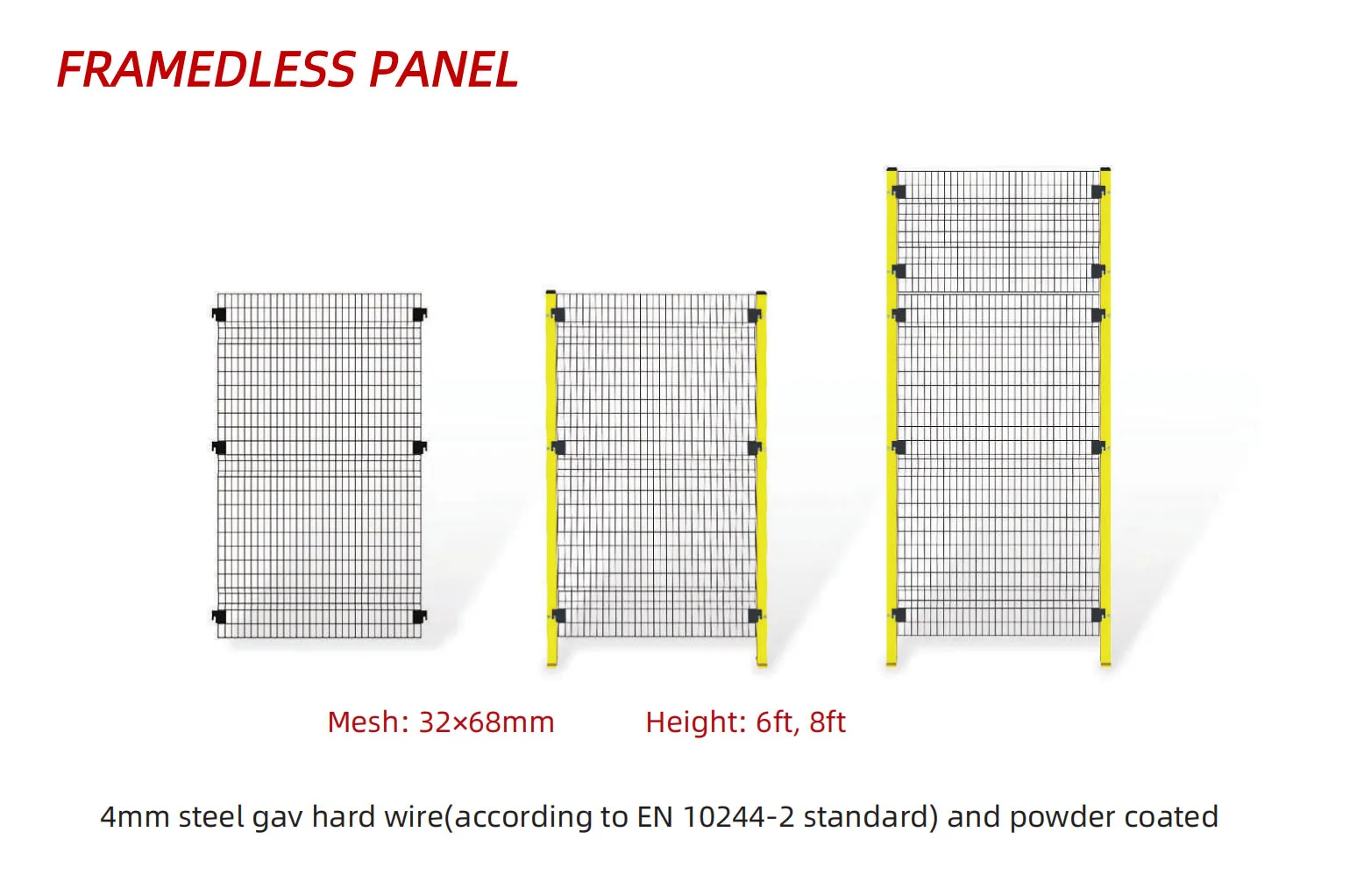

Framedless Panel
-
With a comprehensive range of standard components and accessories the MetalTec-Fence system can help solve most of your workplace health and safety issues.
-
This complete range of products is safe, simple, and cost effective.
-

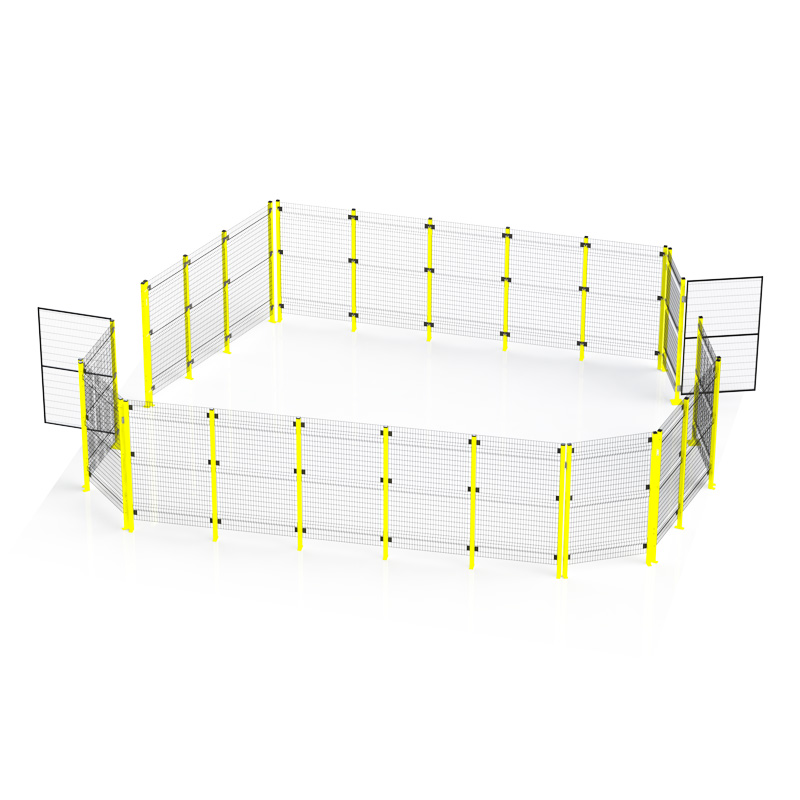

The modular nature of MetalTec-Fence Machinery Guarding allows endless configurations and is suitable to many applications.
-
It is an easy to assemble safety fence system providing clear separation between workers, machinery and vehicles keeping both operators and equipment protected from injury or damage.
Description
-

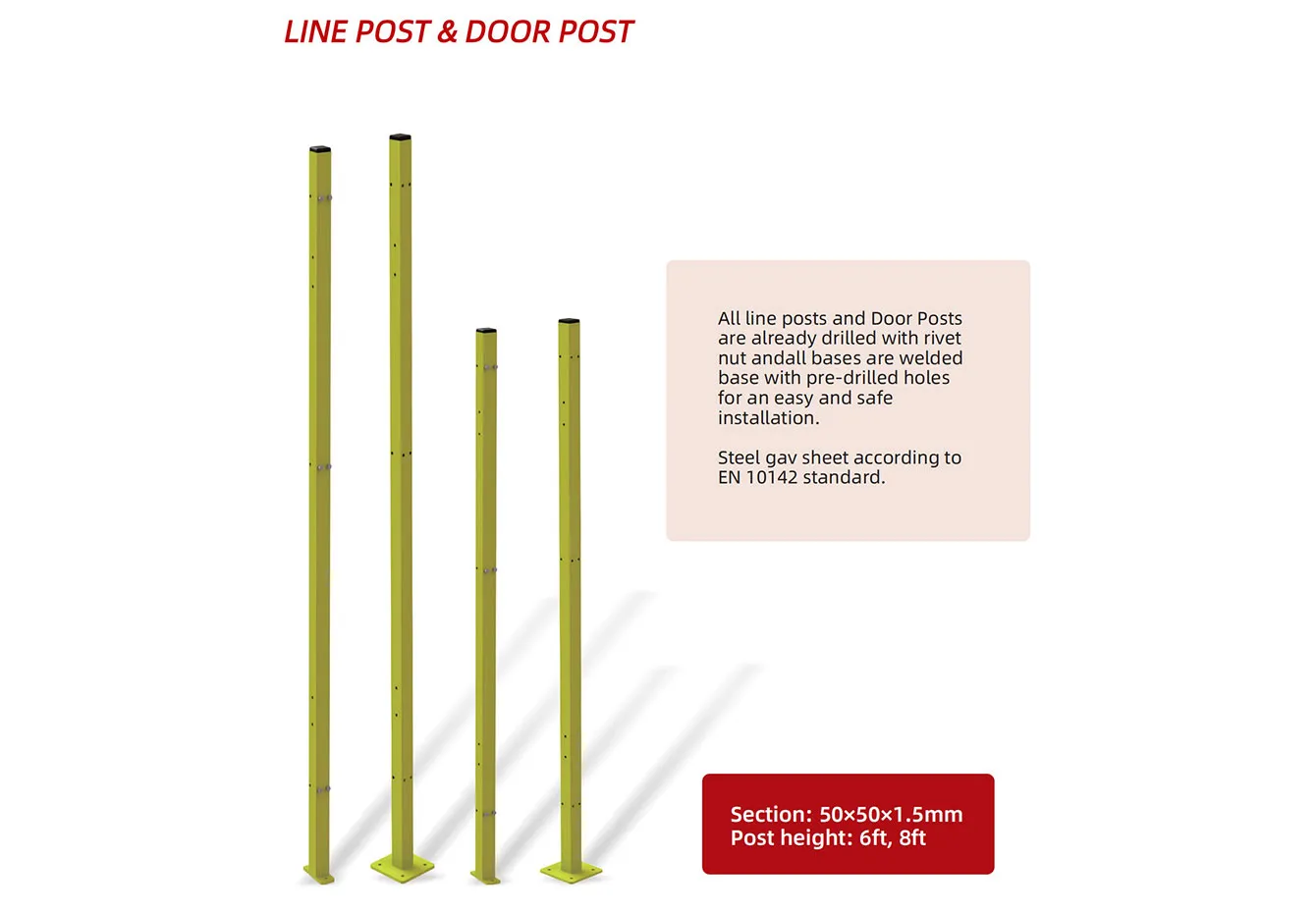

All line posts and door posts are already drilled with rivet nut and all bases are welded base with pre-drilled holes for an easy and safe installation.
-
Steel GAV sheet according to EN10142 standard.
-
Metaltec machine guarding fence system has two types of doors for different usage, swing door and sliding door.
-
Both door packs gives you easy and safe passage to and from the enclosed area.
-
By using high quality hinges and rails, HEBEI MINMETALS door pack can stay strong and endurance.
-
The framed panels, posts have been tested according to the recommendations on the impact tests described in ISO 14120:2015 annex C with the impact energies 1600J.
-
The unframed panels, posts have been tested according to the recommendations on the impact tests described in ISO 14120:2015 annex C with the impact energies 1200J.
Advantage
Easy&Quick—Assembly
-
With a comprehensive range of standard components and Post&Welded base with pre-drilled holes, our MetalTec can be easily and quickly assembled.
Anti-Climbing
-
External vertical wires limit toeholds and effectively deter climbing.
Visibility
-
The vertical slots and black painted finish ensure excellent visibility of the machinery through the wire mesh panels.
Cut Arbitrarily
-
If necessary, panels can also be cut to length or height on site and finished with the cut kit.
Parameter Table
| DESCRIPTION | PART # |
| FRAMED PANEL, 200 X 600, PAINTED RAL9OO5 BLACK | FP200X600 |
| FRAMED PANEL,300X600,PAINTED RAL9O05 BLACK | FP300X600 |
| FRAMED PANEL 700 X600,PAINTED RAL9OO5 BLACK | FP700X600 |
| FRAMED PANEL, 800 X 600, PAINTED RAL9OO5 BLACK | FP800X600 |
| FRAMED PANEL,1000 X600,PAINTED RAL9005 BLACHK | FP1000X600 |
| FRAMED PANEL,1200 X600, PAINTED RAL90O5 BLACK | FP1200X600 |
| FRAMED PANEL,1500X 600, PAINTED RAL9OO5 BLACK | FP1500X600 |
| FRAMED PANEL,200 X1688, PAINTED RAL9005 BLACK | FP200X1688 |
| FRAMED PANEL.300X1688,PAINTED RAL90O5 BLACK | FP300X1688 |
| FRAMED PANEL,700 X1688,PAINTED RAL9OO5 BLACK | FP700X1688 |
| FRAMED PANEL,8O0X1688,PAINTED RAL9O05 BLACK | FP800X1688 |
| FRAMED PANEL,1000X1688,PAINTED RAL9005 BLACH | FP1000X1688 |
| FRAMED PANEL,1200X1688,PAINTED RAL90O5 BLACK | FP1200X1688 |
| FRAMED PANEL,1500X1688, PAINTED RAL9OO5 BLACK |
FP1500X1688 |
| DESCRIPTION | PART # |
| UNFRAMED PANEL 300 X 600, PAINTED RAL9OO5 BLACK | UP300X600 |
| UNFRAMED PANEL,500X600,PAINTED RAL9O05 BLACK | UP500X600 |
| UNFRAMED PANEL,800 X600,PAINTED RAL9OO5 BLACK | UP800X600 |
| UNERAMED PANEL 1000X600,PAINTED RAL9005 BLACK | UP1000X600 |
| UNERAMED PANEL 1200 X600,PAINTED RAL9005 BLACK | UP1200X600 |
| UNFRAMED PANEL, 1500 X 600, PAINTED RAL9OO5 BLACK | UP1500X600 |
| UNFRAMED PANEL,1800 X 600, PAINTED RAL9OO5 BLACK | UP1800X600 |
| UNFRAMED PANEL, 2400 X600, PAINTED RAL9OO5 BLACK | UP2400X600 |
| UNFRAMED PANEL,300X1688, PAINTED RAL9OO5 BLACK | UP300X1688 |
| UNFRAMED PANEL, 500 X1688, PAINTED RAL9OO5 BLACK | UP500X1688 |
| UNFRAMED PANEL,800X1688, PAINTED RAL9OOS BLACK | UP800X1688 |
| UNFRAMED PANEL,1000 X1688,PAINTED RAL9O05 BLACK | UP1000X1688 |
| UNFRAMED PANEL,1200X1688,PAINTED RAL90O5 BLACK | UP1200X1688 |
| UNERAMED PANEL,1500X1688,PAINTED RAL9005 BLACK | UP1500X1688 |
| UNFRAMED PANEL 1800 X 1688, PAINTED RAL9OO5 BLACK | UP1800X1688 |
| UNFRAMED PANEL, 2400 X1688, PAINTED RAL9O05 BLACK | UP2400X1688 |
