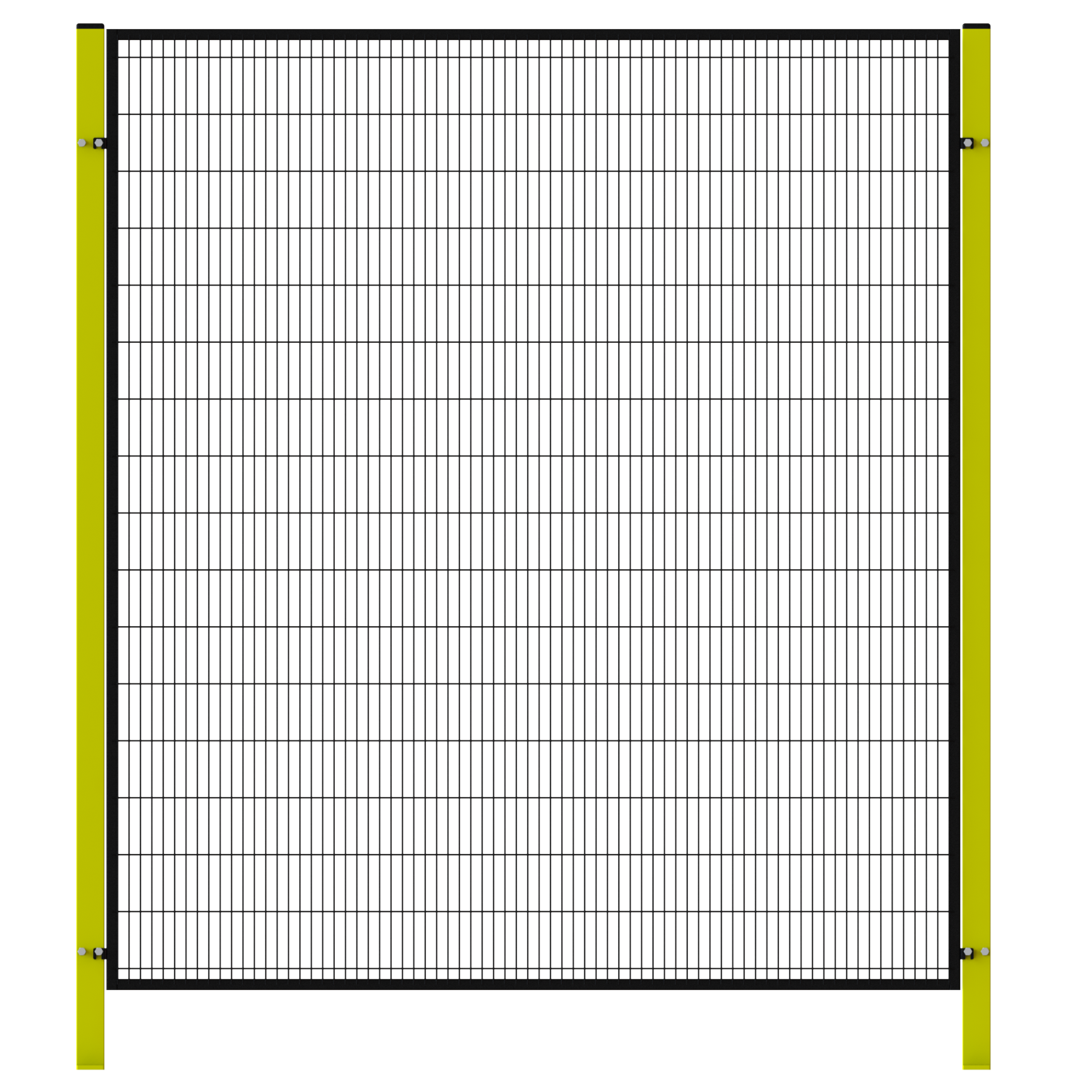

Framed Panel

Framed Panel
    • With a comprehensive range of standard components and accessories the MetalTec-Fence system can help solve most of your workplace health and safety issues.

    • This complete range of products is safe, simple, and cost effective.

    • The modular nature of MetalTec-Fence Machinery Guarding allows endless configurations and is suitable to many applications.

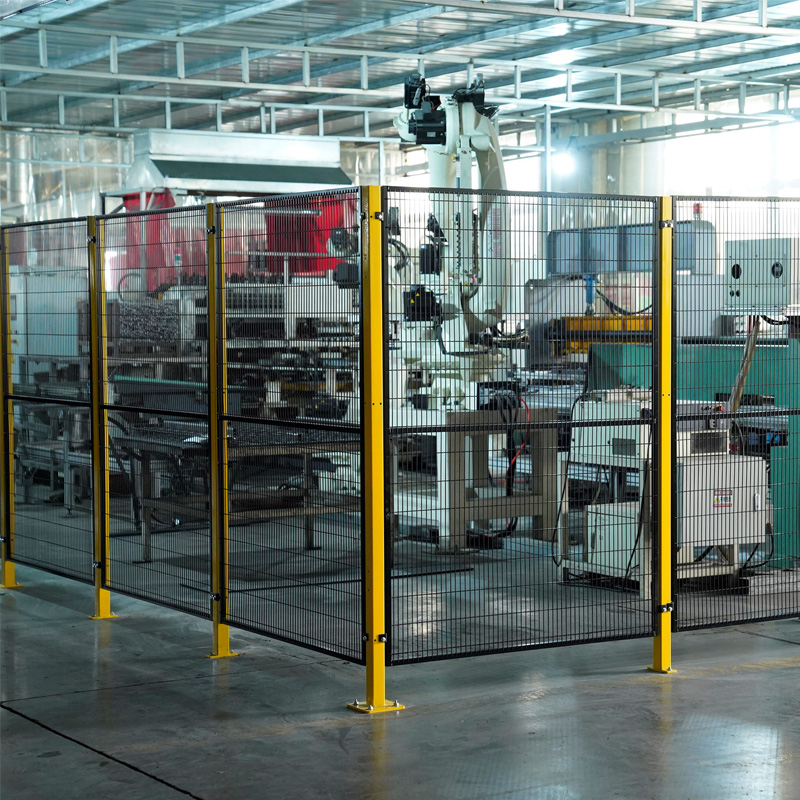

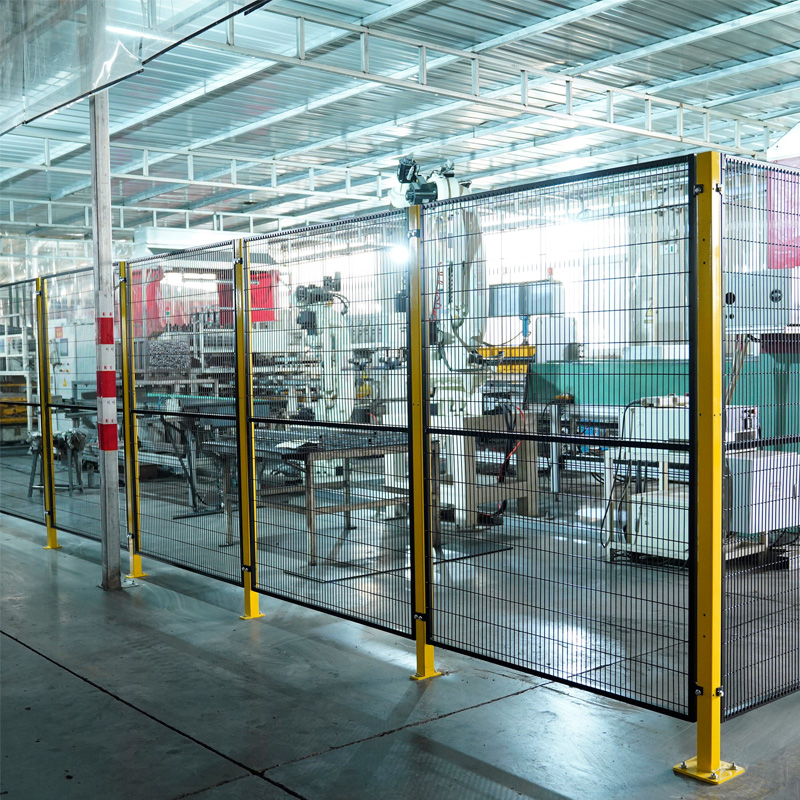

    • It is an easy to assemble safety fence system providing clear separation between workers, machinery and vehicles keeping both operators and equipment protected from injury or damage.





Share

Description

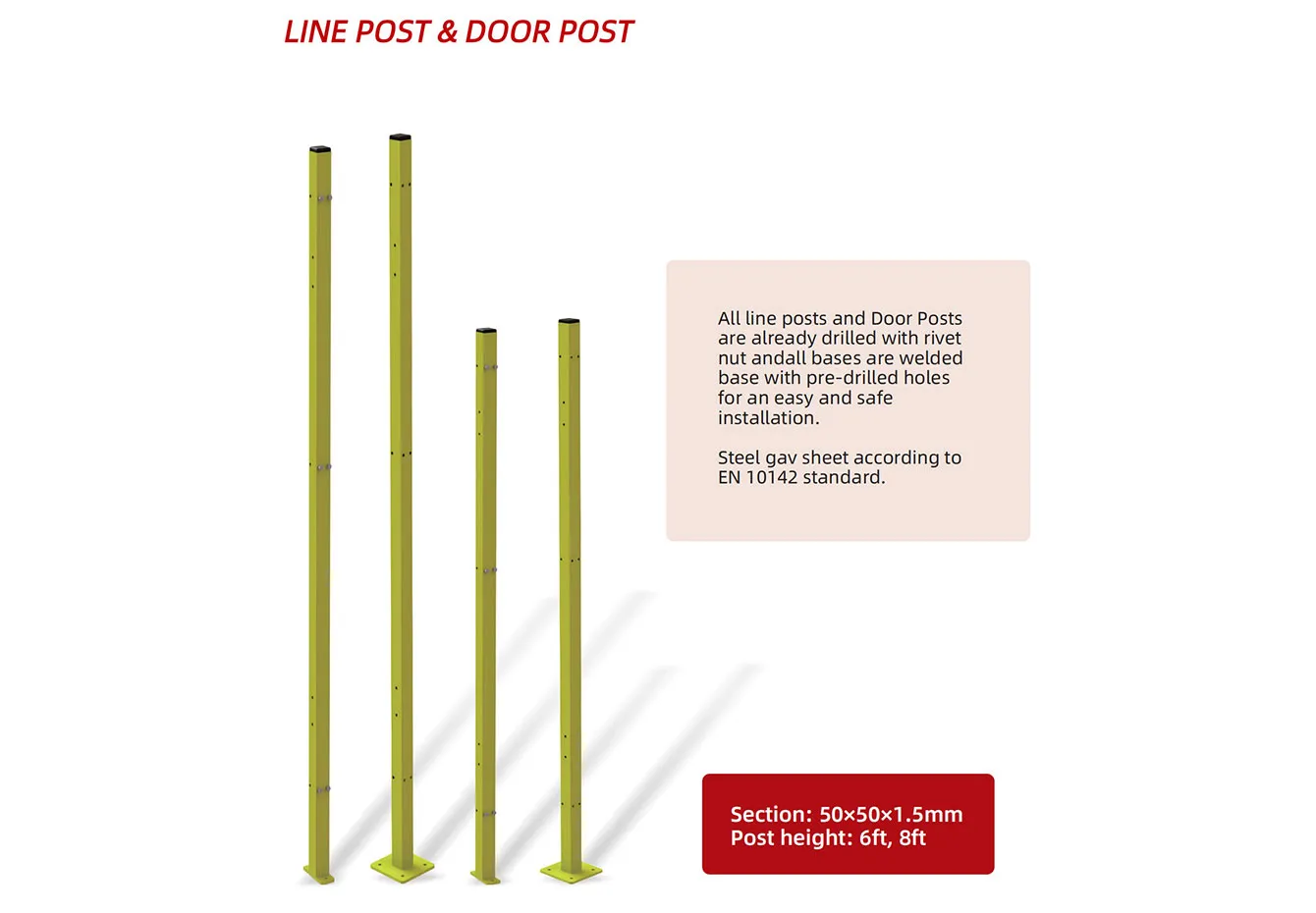

  • All line posts and door posts are already drilled with rivet nut and all bases are welded base with pre-drilled holes for an easy and safe installation.

  • Steel GAV sheet according to EN10142 standard.

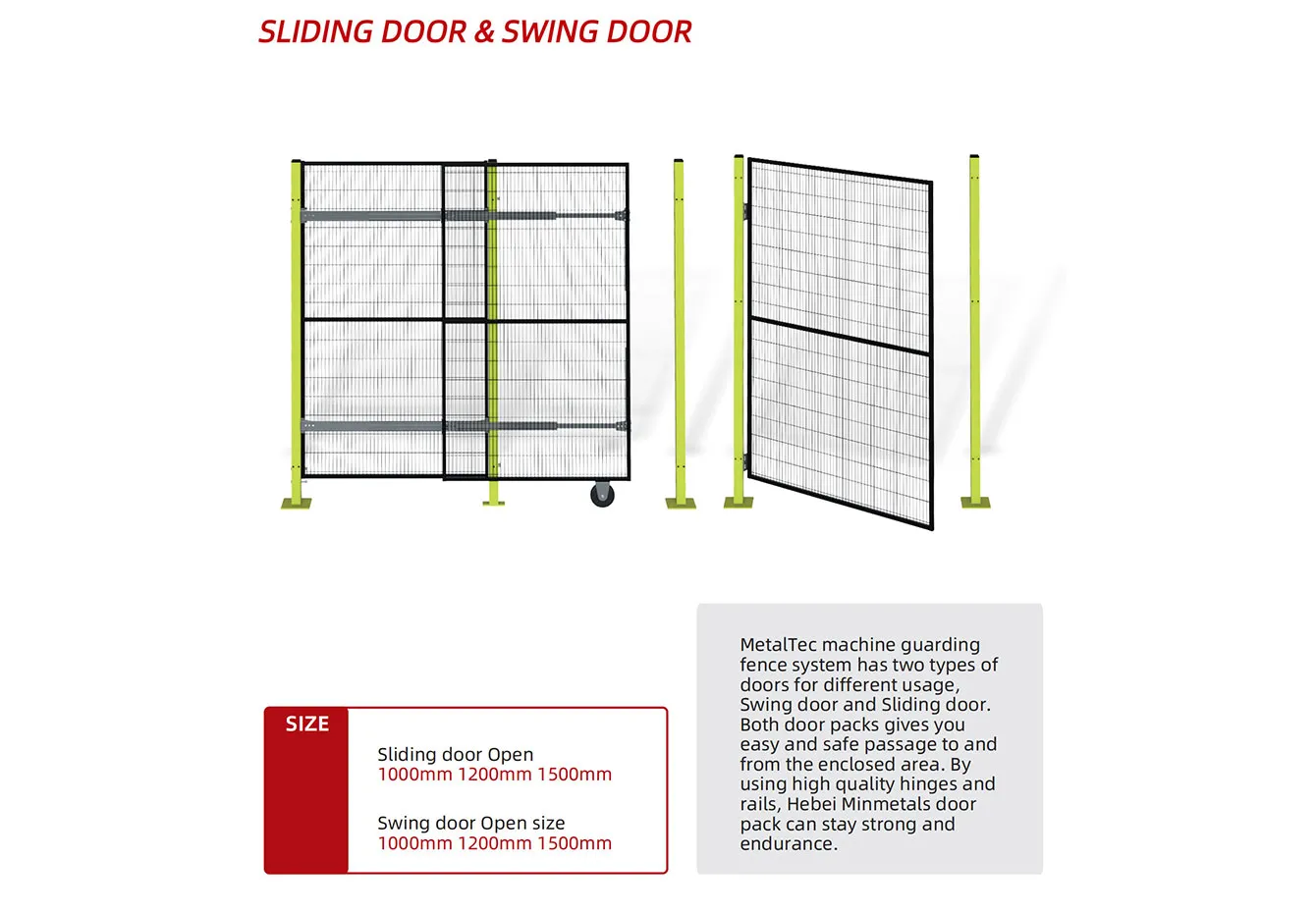

  • Metaltec machine guarding fence system has two types of doors for different usage, swing door and sliding door.

  • Both door packs gives you easy and safe passage to and from the enclosed area.

  • By using high quality hinges and rails, HEBEI MINMETALS door pack can stay strong and endurance.

  • The framed panels, posts have been tested according to the recommendations on the impact tests described in ISO 14120:2015 annex C with the impact energies 1600J.

Advantage

Easy&Quick—Assembly

  • With a comprehensive range of standard components and Post&Welded base with pre-drilled holes, our MetalTec can be easily and quickly assembled.



Anti-Climbing

  • External vertical wires limit toeholds and effectively deter climbing.



Visibility

  • The vertical slots and black painted finish ensure excellent visibility of the machinery through the wire mesh panels.



Cut Arbitrarily

  • If necessary, panels can also be cut to length or height on site and finished with the cut kit.

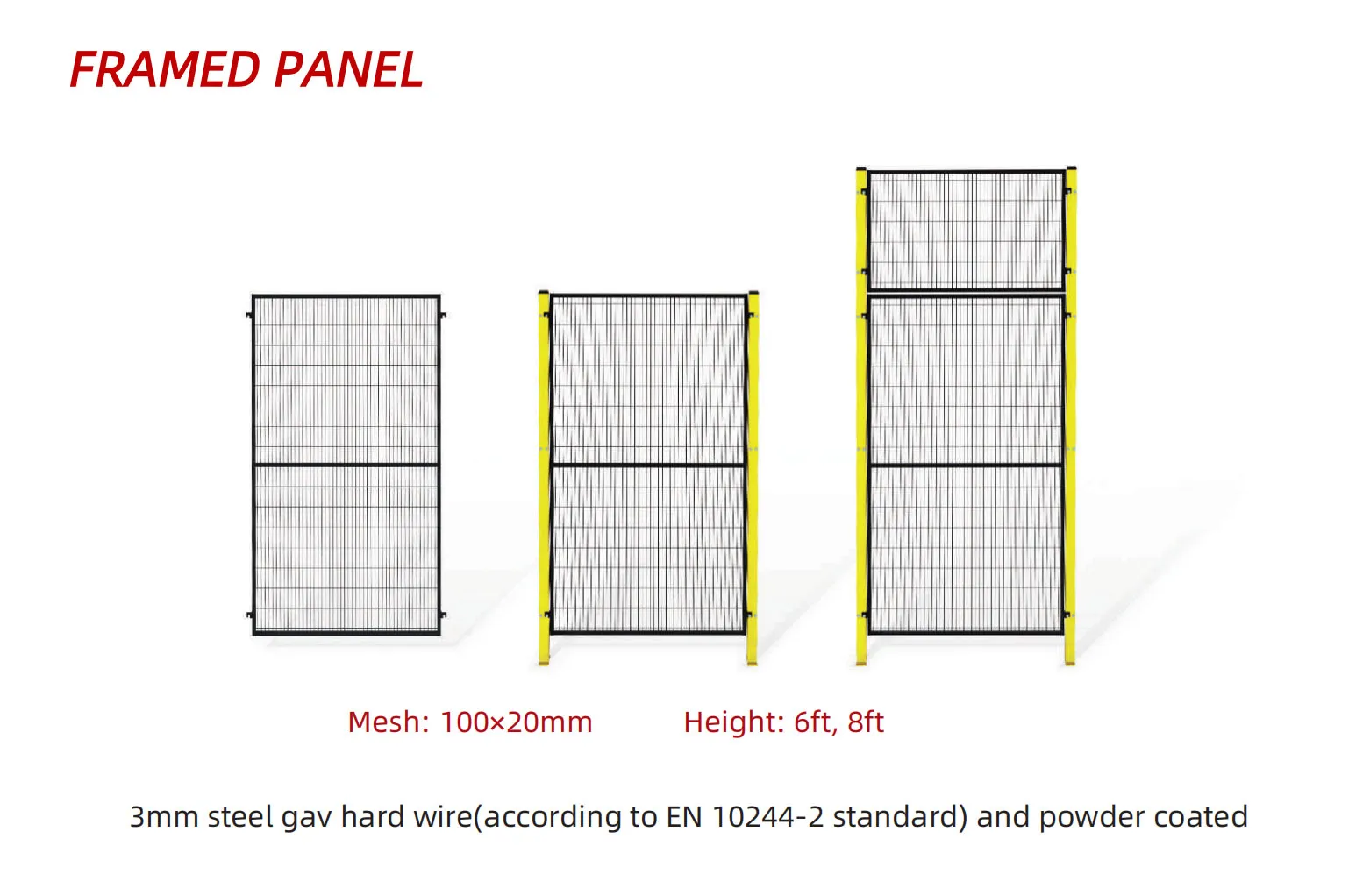

Parameter Table






DESCRIPTION PART #
FRAMED PANEL, 200 X 600, PAINTED RAL9OO5 BLACK FP200X600
FRAMED PANEL,300X600,PAINTED RAL9O05 BLACK FP300X600
FRAMED PANEL 700 X600,PAINTED RAL9OO5 BLACK FP700X600
FRAMED PANEL, 800 X 600, PAINTED RAL9OO5 BLACK FP800X600
FRAMED PANEL,1000 X600,PAINTED RAL9005 BLACHK FP1000X600
FRAMED PANEL,1200 X600, PAINTED RAL90O5 BLACK FP1200X600
FRAMED PANEL,1500X 600, PAINTED RAL9OO5 BLACK FP1500X600
FRAMED PANEL,200 X1688, PAINTED RAL9005 BLACK FP200X1688
FRAMED PANEL.300X1688,PAINTED RAL90O5 BLACK FP300X1688
FRAMED PANEL,700 X1688,PAINTED RAL9OO5 BLACK FP700X1688
FRAMED PANEL,8O0X1688,PAINTED RAL9O05 BLACK FP800X1688
FRAMED PANEL,1000X1688,PAINTED RAL9005 BLACH FP1000X1688
FRAMED PANEL,1200X1688,PAINTED RAL90O5 BLACK FP1200X1688
FRAMED PANEL,1500X1688, PAINTED RAL9OO5 BLACK

FP1500X1688

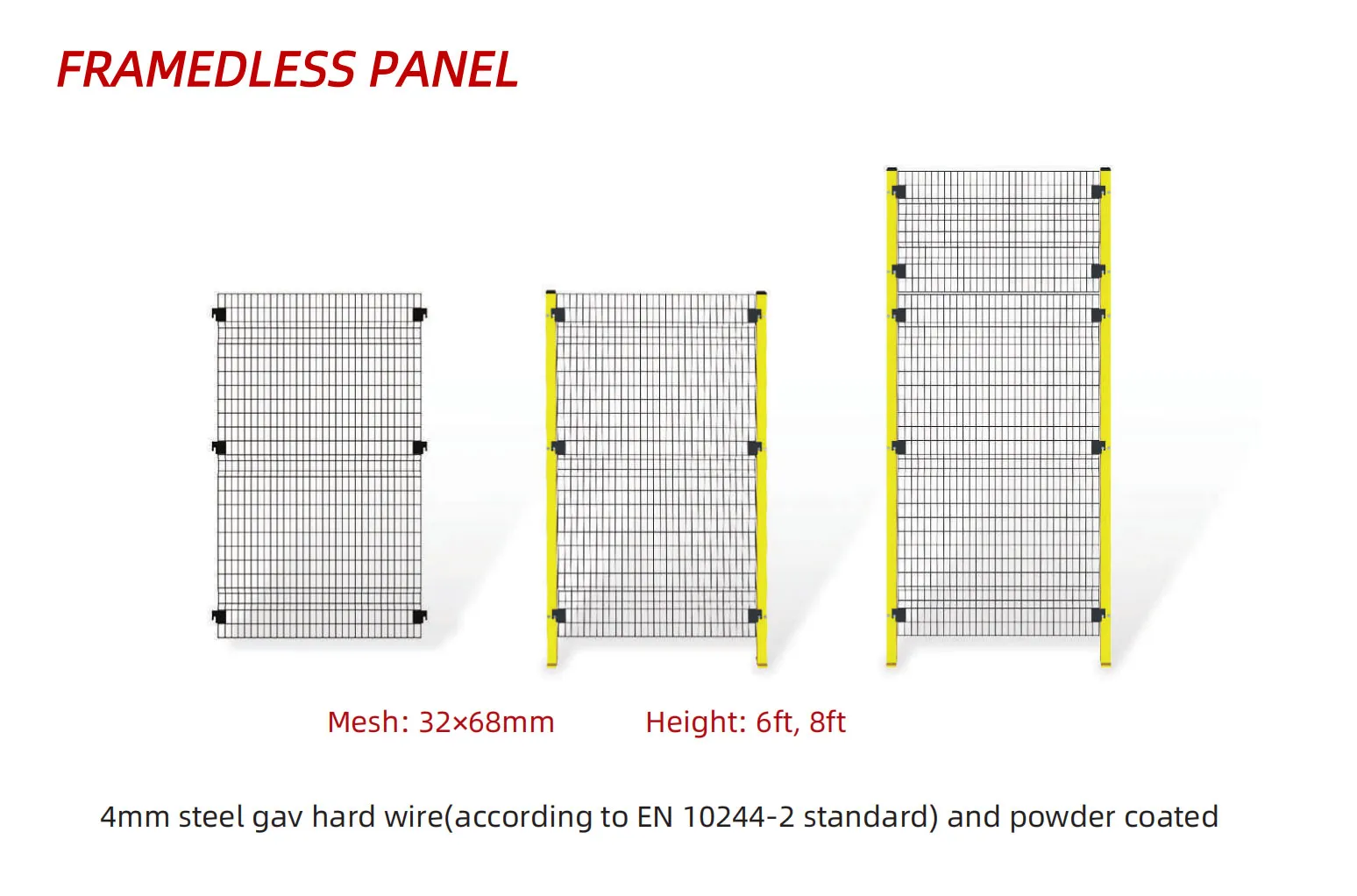

DESCRIPTION PART #
UNFRAMED PANEL 300 X 600, PAINTED RAL9OO5 BLACK UP300X600
UNFRAMED PANEL,500X600,PAINTED RAL9O05 BLACK UP500X600
UNFRAMED PANEL,800 X600,PAINTED RAL9OO5 BLACK UP800X600
UNERAMED PANEL 1000X600,PAINTED RAL9005 BLACK UP1000X600
UNERAMED PANEL 1200 X600,PAINTED RAL9005 BLACK UP1200X600
UNFRAMED PANEL, 1500 X 600, PAINTED RAL9OO5 BLACK UP1500X600
UNFRAMED PANEL,1800 X 600, PAINTED RAL9OO5 BLACK UP1800X600
UNFRAMED PANEL, 2400 X600, PAINTED RAL9OO5 BLACK UP2400X600
UNFRAMED PANEL,300X1688, PAINTED RAL9OO5 BLACK UP300X1688
UNFRAMED PANEL, 500 X1688, PAINTED RAL9OO5 BLACK UP500X1688
UNFRAMED PANEL,800X1688, PAINTED RAL9OOS BLACK UP800X1688
UNFRAMED PANEL,1000 X1688,PAINTED RAL9O05 BLACK UP1000X1688
UNFRAMED PANEL,1200X1688,PAINTED RAL90O5 BLACK UP1200X1688
UNERAMED PANEL,1500X1688,PAINTED RAL9005 BLACK UP1500X1688
UNFRAMED PANEL 1800 X 1688, PAINTED RAL9OO5 BLACK UP1800X1688
UNFRAMED PANEL, 2400 X1688, PAINTED RAL9O05 BLACK UP2400X1688
