Slab Bolsters

Metal bar supports are used in commercial concrete projects to support reinforcing steel in elevated concrete decks, footings, slab on metal deck, bridge decks, pier caps, and other applications. Beam bolster is ideal for heavier rebar loads often in congested areas where deflection of the bar support cannot occur.

製品詳細今コンタクトしてください

Features of Metal Bar Supports

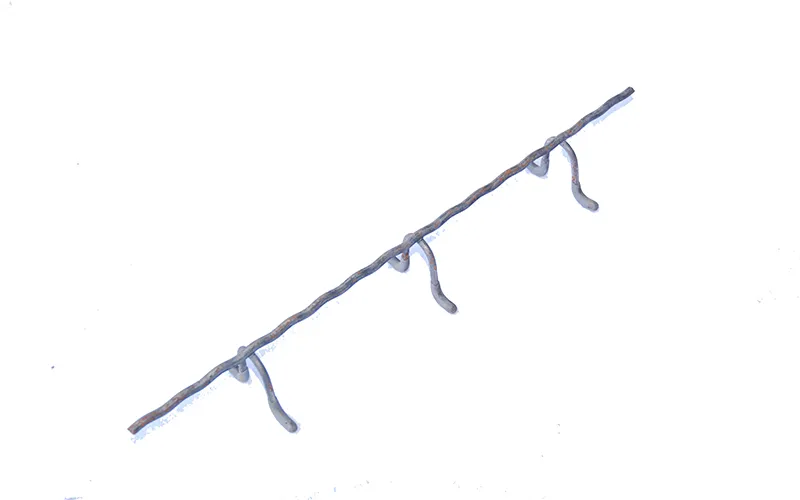

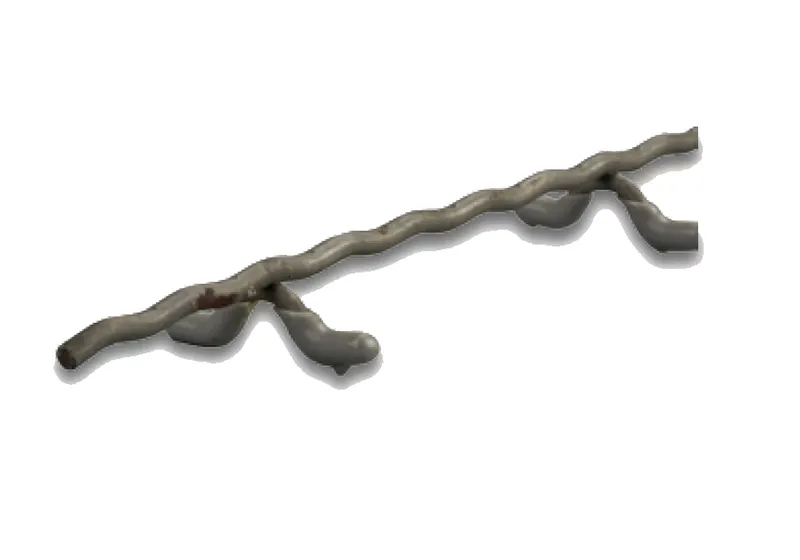

Slab Bolster -- SB

身長	長さ	タイプ
3/4''	5'	Plain foot
1''	10'	Plastic dip foot
1-1/2''		Plastic tip foot
2''		Metal plate foot
2-1/2''
3''

Slab Bolster Upper -- SBU

身長	長さ	タイプ
3/4''	5'	Plain foot
1''	10'	Plastic dip foot
1-1/2''
2''
2-1/2''
3''
4''
5''
6''

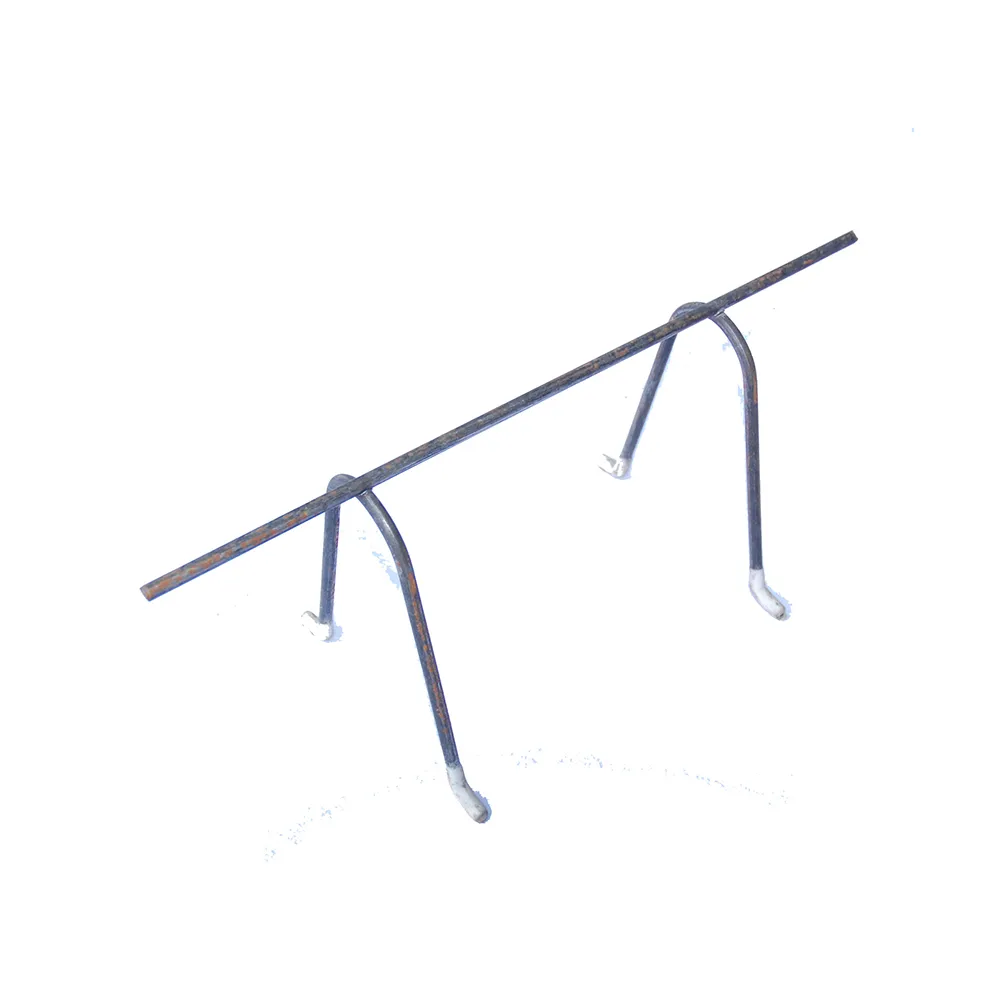

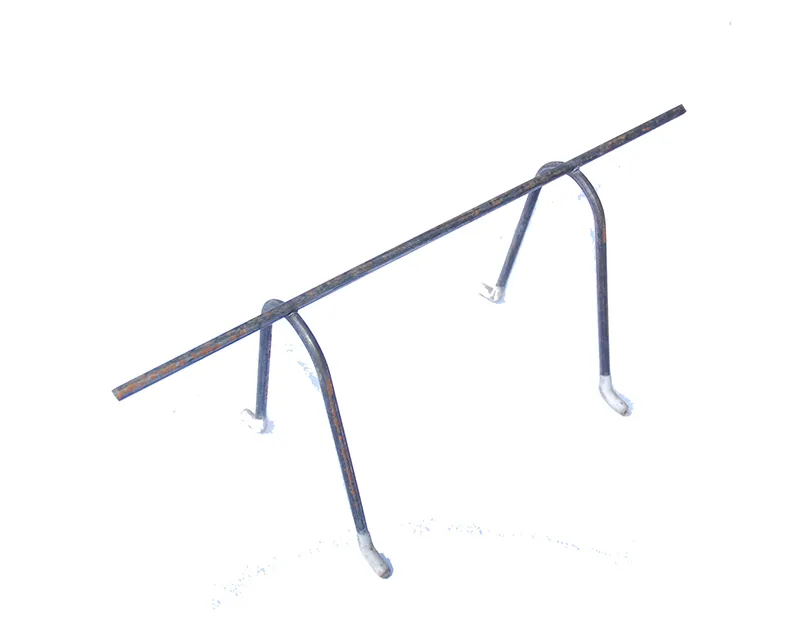

Continuous High Chair -- CHC

身長	長さ	タイプ
3''	5'	Plain foot
3-1/2''	10'	Plastic dip foot
4''		Plastic tip foot
4-1/2''		Metal plate foot
5''
5-1/2''
6''

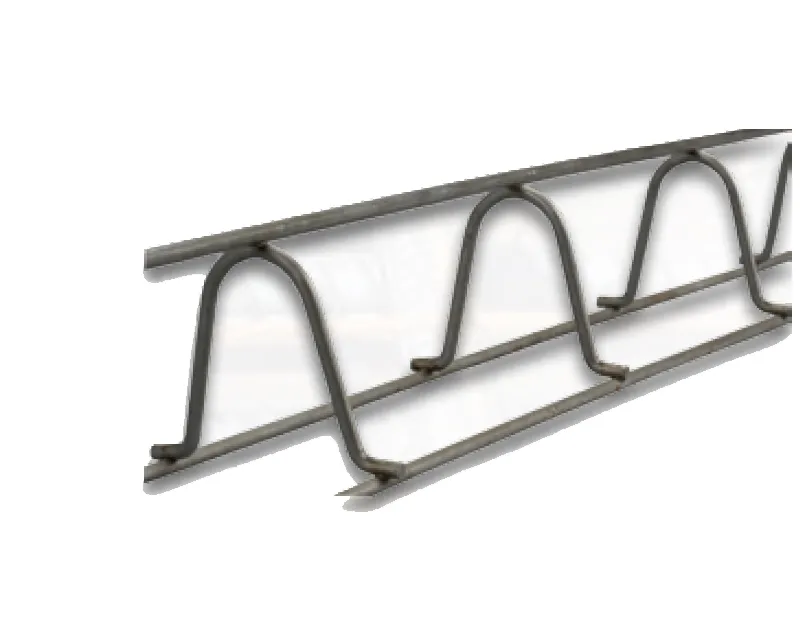

Continuous High Chair Upper-- CHCU

身長	長さ	タイプ
3''	5'	Plain foot
3-1/2''	10'	Plastic dip foot
4''
4-1/2''
5''
5-1/2''
6''

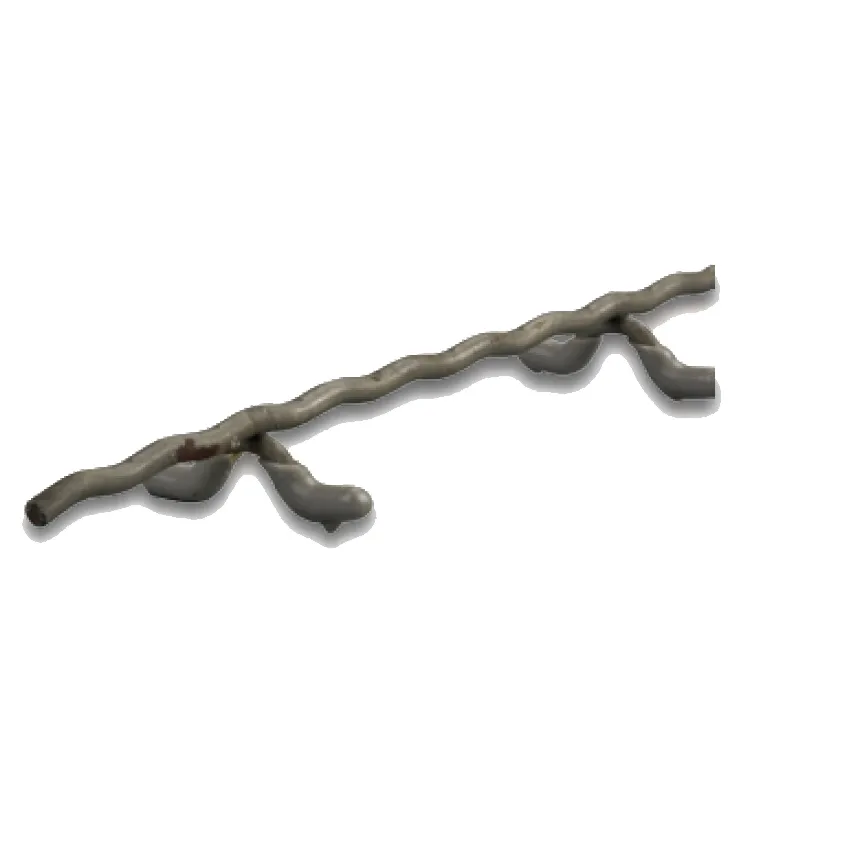

Beam Bolster -- BB

身長	長さ	タイプ
1''	5'	Plain foot
1-1/4''	10'	Plastic dip foot
1-1/2''		Plastic tip foot
1-3/4''
2''

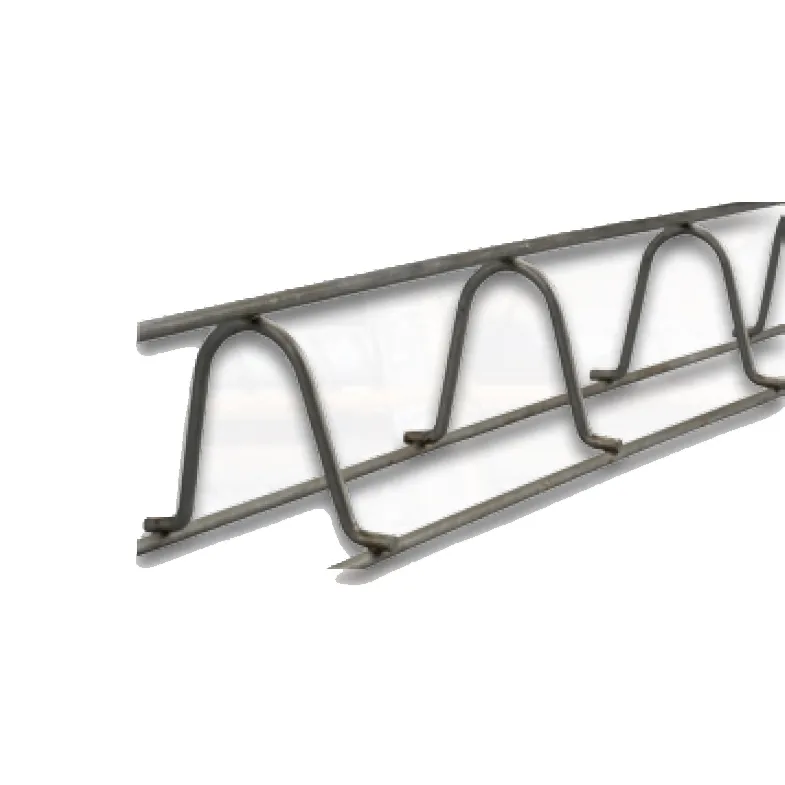

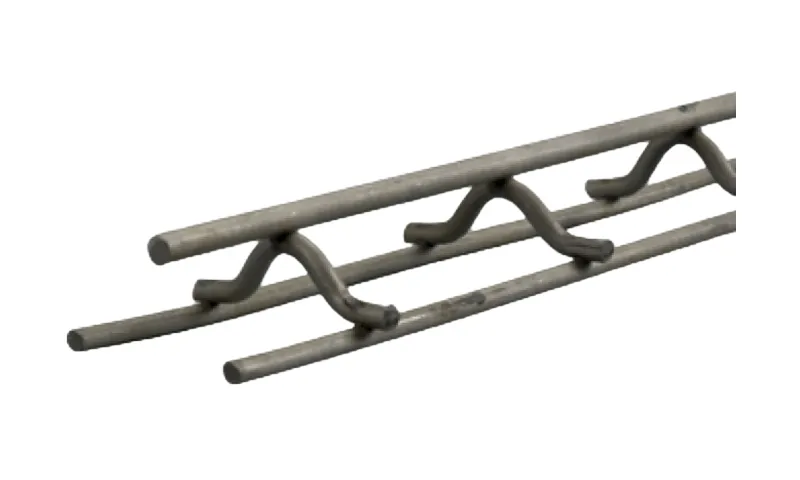

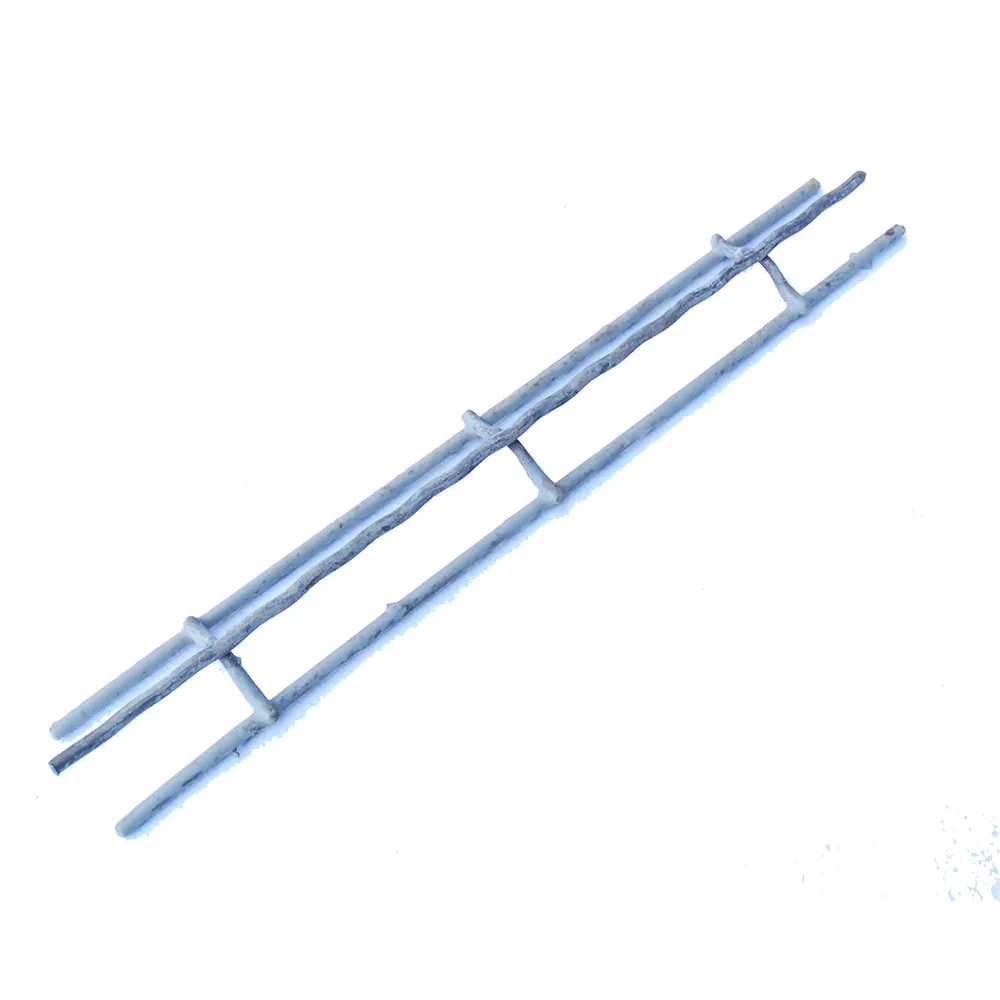

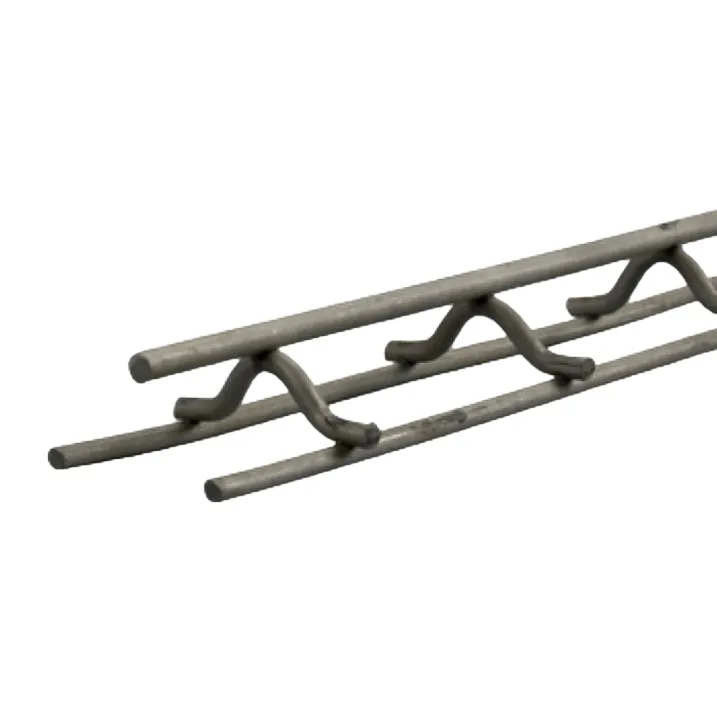

Beam Bolster Upper-- BBU

身長	長さ	タイプ
1''	5'	Plain foot
1-1/4''	10'	Plastic dip foot
1-1/2''
1-3/4''
2''

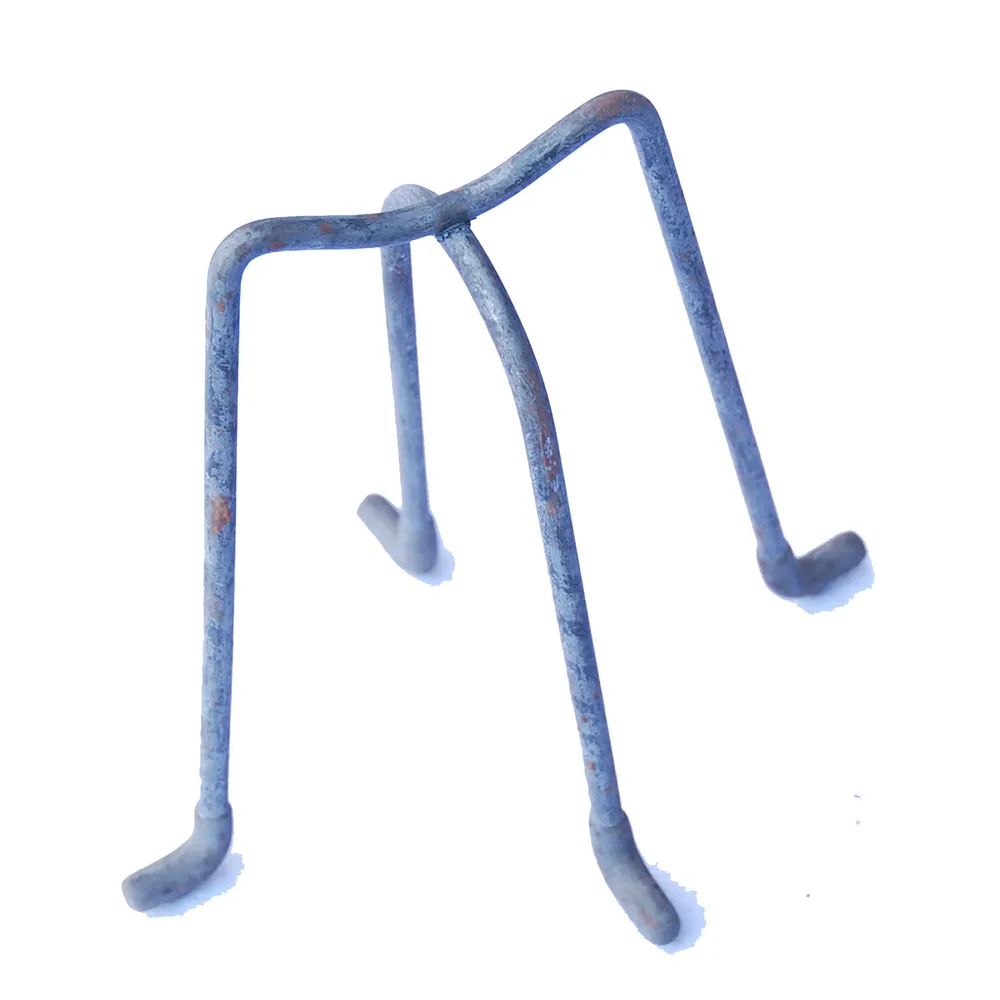

High Chair - HC

身長	タイプ
2''	Plain foot
2-1/2''	Plastic dip foot
3''	Plastic tip foot
3-1/2''	Metal plate foot
4''
4-1/2''
5''
5-1/2''
6''

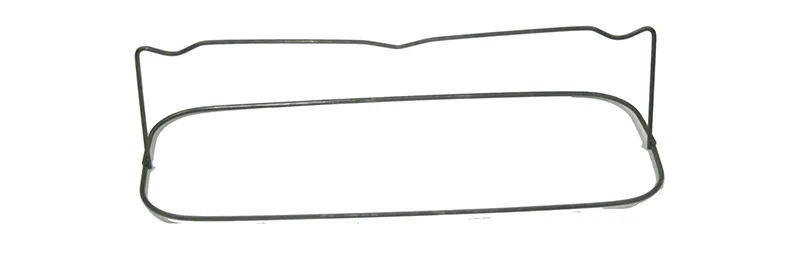

Rod Chair - RC

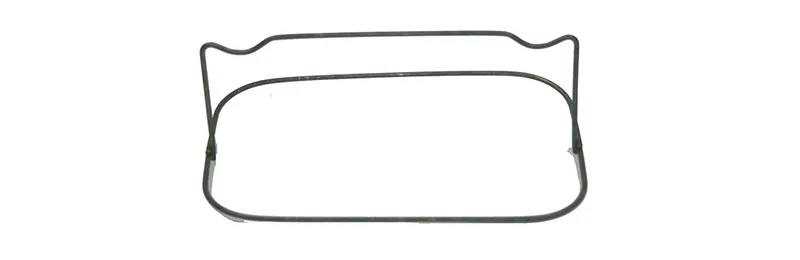

RC#2 6/8
RC#2 10/12
RC#3 16
RC#3 20

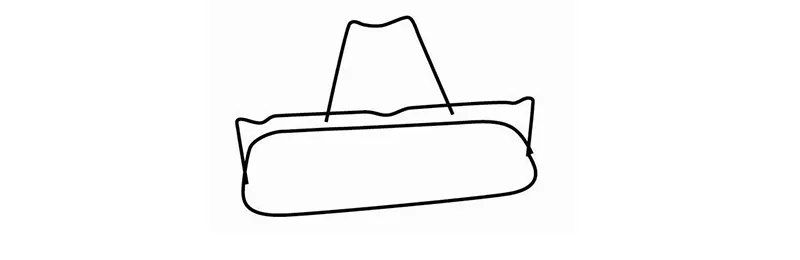

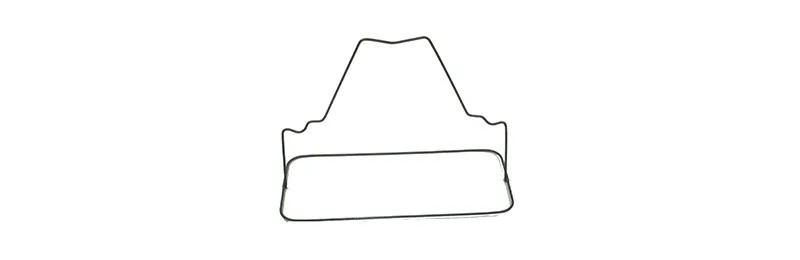

RC#3 16 west palm
RC#3 20 west palm
